24MHz晶振,2016封装,8PF,15PPM,CX2016DB24000D0GEJCC,betway必威中文版官网

产品分类：晶振规格书

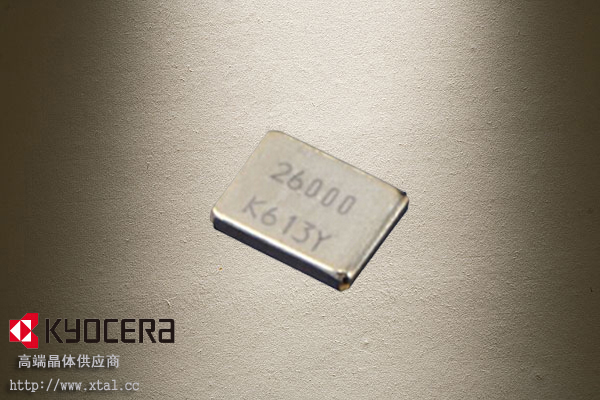

特征用于消费产品的晶体单元超微型和低配置（2×1.6×0.40mm）陶瓷封装回流兼容AEC-Q200资格请与我们联系汽车使用应用数码电子,消费产品移动通信、蓝牙无线局域网,汽车电子。

订购热线：0755-33533774

跟此产品相关的产品

: CX2016DB24000D0GEJCC晶振 24MHz晶振 8PF 15PPM 2016封装 betway必威中文版官网

: CX2016DB24000D0GEJCC晶振 24MHz晶振 8PF 15PPM 2016封装 betway必威中文版官网

产品详情

料号	频率	频率稳定性	频率容差	负载电容	工作温度
CX2016DB16000D0WZRC1	16MHz	±40ppm	±25ppm	8pF	25°C ~ 75°C
CX2016DB19200D0FLJC1	19.2MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB24000D0GEJCC	24MHz	±15ppm	±15ppm	8pF	10°C ~ 70°C
CX2016DB19200H0FLJC2	19.2MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB25000D0FLJC2	25MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB16000D0FLNCC	16MHz	±25ppm	±10ppm	8pF	-30°C ~ 85°C
CX2016DB27120B0HLLC1	27.12MHz	-	±20ppm	6pF	30°C ~ 85°C
CX2016DB16000D0GPSC1	16MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB20000D0FLJCC	20MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB48000E0DLFA1	48MHz	±10ppm	±8ppm	11.1pF	30°C ~ 85°C
CX2016DB20000H0FLJC1	20MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB40000D0FLJCC	40MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB26000H0FLJC2	26MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB24000H0FLJC4	24MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB38400C0WPLA2	38.4MHz	±20ppm	±20ppm	7pF	40°C ~ 85°C
CX2016DB32000D0WZRC1	32MHz	±40ppm	±25ppm	8pF	25°C ~ 75°C
CX2016DB48000H0FLJC1	48MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB48000C0WLLA1	48MHz	±20ppm	±20ppm	7pF	30°C ~ 85°C
CX2016DB24000D0FLJC6	24MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB24576H0FLJC1	24.576MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB38400F0FSRC1	38.4MHz	±40ppm	±10ppm	10pF	40°C ~ 125°C
CX2016DB48000C0FPLC1	48MHz	±20ppm	±10ppm	7pF	40°C ~ 85°C
CX2016DB25000H0FLJC1	25MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB26000D0FLJCC	26MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB48000C0WPLA2	48MHz	±15ppm	±20ppm	7pF	40°C ~ 85°C
CX2016DB32000D0FLJCC	32MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB38400D0FLJCC	38.4MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB32000H0FLJC1	32MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB27000H0FLFC1	27MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB19200D0GPSC1	19.2MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB19200H0KFQC1	19.2MHz	±30ppm	±30ppm	12pF	20°C ~ 70°C
CX2016DB26000D0GPSC1	26MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB40000H0FLJC1	40MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB25000H0FLJCC	25MHz	-	±10ppm	12pF	30°C ~ 85°C
CX2016DB16000D0GLJCC	16MHz	±15ppm	±15ppm	8pF	30°C ~ 85°C
CX2016DB26000D0FLJZ1	26MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB53125K0KJSC1	53.125MHz	±50ppm	±30ppm	14pF	30°C ~ 75°C
CX2016DB24576D0GPSC1	24.576MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB27000D0FLJC1	27MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB38400H0FLJC1	38.4MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB38880D0KJSC1	38.88MHz	±50ppm	±30ppm	8pF	30°C ~ 75°C
CX2016DB16000D0JLNCC	16MHz	±25ppm	±15ppm	8pF	30°C ~ 85°C
CX2016DB32000D0WPRC1	32MHz	±25ppm	±25ppm	8pF	25°C ~ 75°C
CX2016DB16000H0FLNC1	16MHz	±25ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB48000D0GPSC1	48MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB50000D0KJSC1	50MHz	±50ppm	±30ppm	8pF	30°C ~ 75°C
CX2016DB40000H0WZKC3	40MHz	-	±18ppm	12pF	-
CX2016DB24000D0GEJZ1	24MHz	±15ppm	±15ppm	8pF	10°C ~ 70°C
CX2016DB31250K0KJSC1	31.25MHz	±50ppm	±30ppm	14pF	30°C ~ 75°C
CX2016DB16000H0FLJC1	16MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB32000D0FLJZ1	32MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB26000D0FLJC1	26MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB39062K0KJSC1	39.0625MHz	±50ppm	±30ppm	14pF	30°C ~ 75°C
CX2016DB25000D0GPSC1	25MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB38400D0GPSC1	38.4MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB27000D0GEJCC	27MHz	±15ppm	±15ppm	8pF	10°C ~ 70°C
CX2016DB24576D0GEJZ1	24.576MHz	±15ppm	±15ppm	8pF	10°C ~ 70°C
CX2016DB30000H0FLJC1	30MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB24576D0GEJCC	24.576MHz	±15ppm	±15ppm	8pF	10°C ~ 70°C
CX2016DB16000D0FLJCC	16MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB16000D0JLJCC	16MHz	±15ppm	±15ppm	8pF	30°C ~ 85°C
CX2016DB27000H0FLJC1	27MHz	±15ppm	±10ppm	12pF	30°C ~ 85°C
CX2016DB16000D0GLNCC	16MHz	±25ppm	±15ppm	8pF	30°C ~ 85°C
CX2016DB27000D0GEJZ1	27MHz	±15ppm	±15ppm	8pF	10°C ~ 70°C
CX2016DB38400D0FLJZ1	38.4MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB40000D0GPSC1	40MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
ST4115SB32768H5HPWZZ	32.768kHz	-	±20ppm	12.5pF	40°C ~ 85°C
CX2016DB27000D0GPSC1	27MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB48000D0FLJC1	48MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
ST4115SB32768E0HPWZZ	32.768kHz	-	±20ppm	9pF	40°C ~ 85°C
CX2016DB40960D0KJSC1	40.96MHz	±50ppm	±30ppm	8pF	30°C ~ 75°C
CX2016DB24000D0PESCC	24MHz	-	±50ppm	8pF	-
CX2016DB20000D0GPSC1	20MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB24000D0GPSC2	24MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB30000D0FLJC1	30MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB24576D0FLJC1	24.576MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB35416K0HJLC1	35.416MHz	±15ppm	±15ppm	8pF	30°C ~ 85°C
CX2016DB26000D5FLJCC	26MHz	-	±10ppm	8.5pF	30°C ~ 85°C
CX2016DB30000D0GPSC1	30MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB40000H0DZGC1	40MHz	-	±8ppm	12pF	-
CX2016DB32000D0GPSC1	32MHz	±50ppm	±15ppm	8pF	40°C ~ 85°C
CX2016DB35416K0DZFA1	35.416MHz	±15ppm	±10ppm	8pF	10°C ~ 70°C
CX2016DB40000D0FLJZ1	40MHz	±15ppm	±10ppm	8pF	30°C ~ 85°C
CX2016DB16000D0GPNCC	16MHz	-	±15ppm	8pF	-
