NX5032GA-8.000M-STD-CSK-7

产品分类：晶振规格书

订购热线： 0755-33533774

跟此产品相关的产品

产品详情

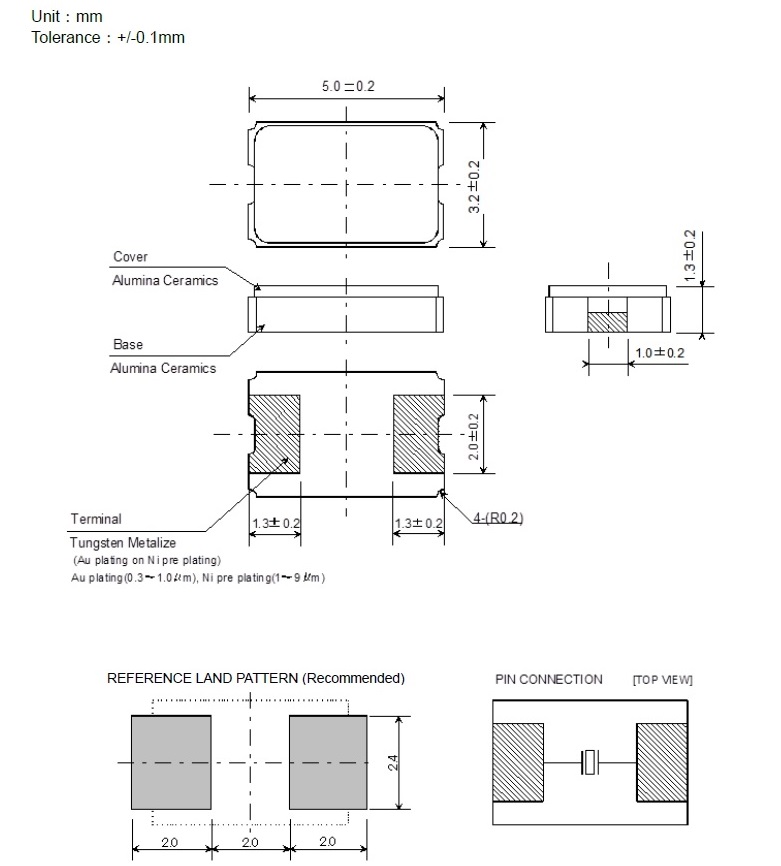

NX5032GA 0.jpg

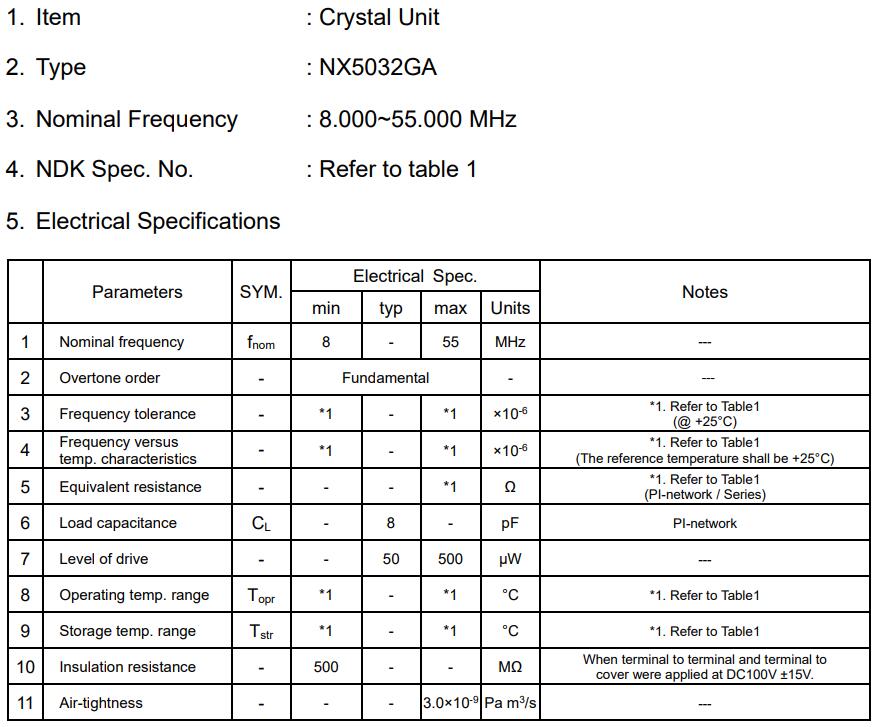

NX5032GA 1.jpg

型号	频率	负载电容	精度	工作温度
NX5032GA-8.000M-STD-CSK-3	8MHz	8PF	20PPM	-10~+70℃
NX5032GA-8.192M-STD-CSK-3	8.192MHz	8PF	20PPM	-10~+70℃
NX5032GA-9.000M-STD-CSK-3	9MHz	8PF	20PPM	-10~+70℃
NX5032GA-9.216M-STD-CSK-3	9.216MHz	8PF	20PPM	-10~+70℃
NX5032GA-9.519M-STD-CSK-3	9.519MHz	8PF	20PPM	-10~+70℃
NX5032GA-9.600M-STD-CSK-3	9.6MHz	8PF	20PPM	-10~+70℃
NX5032GA-9.830M-STD-CSK-3	9.83MHz	8PF	20PPM	-10~+70℃
NX5032GA-9.844M-STD-CSK-3	9.844MHz	8PF	20PPM	-10~+70℃
NX5032GA-10.000M-STD-CSK-3	10MHz	8PF	20PPM	-10~+70℃
NX5032GA-10.178M-STD-CSK-3	10.178MHz	8PF	20PPM	-10~+70℃
NX5032GA-11.059M-STD-CSK-4	11.059MHz	8PF	20PPM	-10~+70℃
NX5032GA-11.290M-STD-CSK-4	11.29MHz	8PF	20PPM	-10~+70℃
NX5032GA-12.000M-STD-CSK-4	12MHz	8PF	20PPM	-10~+70℃
NX5032GA-12.288M-STD-CSK-4	12.288MHz	8PF	20PPM	-10~+70℃
NX5032GA-12.500M-STD-CSK-4	12.5MHz	8PF	20PPM	-10~+70℃
NX5032GA-12.580M-STD-CSK-4	12.58MHz	8PF	20PPM	-10~+70℃
NX5032GA-12.732M-STD-CSK-4	12.732MHz	8PF	20PPM	-10~+70℃
NX5032GA-12.750M-STD-CSK-4	12.75MHz	8PF	20PPM	-10~+70℃
NX5032GA-13.000M-STD-CSK-4	13MHz	8PF	20PPM	-10~+70℃
NX5032GA-13.081M-STD-CSK-4	13.081MHz	8PF	20PPM	-10~+70℃
NX5032GA-13.226M-STD-CSK-4	13.226MHz	8PF	20PPM	-10~+70℃
NX5032GA-13.400M-STD-CSK-4	13.4MHz	8PF	20PPM	-10~+70℃
NX5032GA-13.440M-STD-CSK-4	13.44MHz	8PF	20PPM	-10~+70℃
NX5032GA-13.500M-STD-CSK-4	13.5MHz	8PF	20PPM	-10~+70℃
NX5032GA-13.560M-STD-CSK-4	13.56MHz	8PF	20PPM	-10~+70℃
NX5032GA-13.824M-STD-CSK-4	13.824MHz	8PF	20PPM	-10~+70℃
NX5032GA-14.000M-STD-CSK-4	14MHz	8PF	20PPM	-10~+70℃
NX5032GA-14.188M-STD-CSK-4	14.188MHz	8PF	20PPM	-10~+70℃
NX5032GA-14.297M-STD-CSK-4	14.297MHz	8PF	20PPM	-10~+70℃
NX5032GA-14.300M-STD-CSK-4	14.3MHz	8PF	20PPM	-10~+70℃
NX5032GA-14.318M-STD-CSK-4	14.318MHz	8PF	20PPM	-10~+70℃
NX5032GA-14.400M-STD-CSK-4	14.4MHz	8PF	20PPM	-10~+70℃
NX5032GA-14.500M-STD-CSK-4	14.5MHz	8PF	20PPM	-10~+70℃
NX5032GA-14.746M-STD-CSK-4	14.7456MHz	8PF	20PPM	-10~+70℃
NX5032GA-15.000M-STD-CSK-4	15MHz	8PF	20PPM	-10~+70℃
NX5032GA-15.360M-STD-CSK-4	15.36MHz	8PF	20PPM	-10~+70℃
NX5032GA-15.968M-STD-CSK-4	15.968MHz	8PF	20PPM	-10~+70℃
NX5032GA-15.974M-STD-CSK-4	15.974MHz	8PF	20PPM	-10~+70℃
NX5032GA-15.978M-STD-CSK-4	15.978MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.000M-STD-CSK-4	16MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.013M-STD-CSK-4	16.013MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.384M-STD-CSK-4	16.384MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.500M-STD-CSK-4	16.5MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.589M-STD-CSK-4	16.589MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.600M-STD-CSK-4	16MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.667M-STD-CSK-4	16.667MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.670M-STD-CSK-4	16.670MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.700M-STD-CSK-4	16.7MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.777M-STD-CSK-4	16.777MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.900M-STD-CSK-4	16.9MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.920M-STD-CSK-4	16.92MHz	8PF	20PPM	-10~+70℃
NX5032GA-16.934M-STD-CSK-4	16.934MHz	8PF	20PPM	-10~+70℃
NX5032GA-17.328M-STD-CSK-4	17.328MHz	8PF	20PPM	-10~+70℃
NX5032GA-17.581M-STD-CSK-4	17.571MHz	8PF	20PPM	-10~+70℃
NX5032GA-17.734M-STD-CSK-4	17.734MHz	8PF	20PPM	-10~+70℃
NX5032GA-18.000M-STD-CSK-4	18MHz	8PF	20PPM	-10~+70℃
NX5032GA-18.432M-STD-CSK-4	18.432MHz	8PF	20PPM	-10~+70℃
NX5032GA-19.000M-STD-CSK-4	19MHz	8PF	20PPM	-10~+70℃
NX5032GA-19.070M-STD-CSK-4	19.07MHz	8PF	20PPM	-10~+70℃
NX5032GA-19.200M-STD-CSK-4	19.2MHz	8PF	20PPM	-10~+70℃
NX5032GA-19.312M-STD-CSK-4	19.312MHz	8PF	20PPM	-10~+70℃
NX5032GA-19.313M-STD-CSK-4	19.313MHz	8PF	20PPM	-10~+70℃
NX5032GA-19.661M-STD-CSK-4	19.661MHz	8PF	20PPM	-10~+70℃
NX5032GA-20.000M-STD-CSK-4	20MHz	8PF	20PPM	-10~+70℃
NX5032GA-20.250M-STD-CSK-4	20.25MHz	8PF	20PPM	-10~+70℃
NX5032GA-20.480M-STD-CSK-4	20.48MHz	8PF	20PPM	-10~+70℃
NX5032GA-20.500M-STD-CSK-4	20.5MHz	8PF	20PPM	-10~+70℃
NX5032GA-20.945M-STD-CSK-4	20.945MHz	8PF	20PPM	-10~+70℃
NX5032GA-22.000M-STD-CSK-4	22MHz	8PF	20PPM	-10~+70℃
NX5032GA-22.118M-STD-CSK-4	22.118MHz	8PF	20PPM	-10~+70℃
NX5032GA-22.579M-STD-CSK-4	22.579MHz	8PF	20PPM	-10~+70℃
NX5032GA-22.580M-STD-CSK-4	22.58MHz	8PF	20PPM	-10~+70℃
NX5032GA-24.000M-STD-CSK-4	24MHz	8PF	20PPM	-10~+70℃
NX5032GA-24.191M-STD-CSK-4	24.191MHz	8PF	20PPM	-10~+70℃
NX5032GA-24.288M-STD-CSK-4	24.288MHz	8PF	20PPM	-10~+70℃
NX5032GA-24.305M-STD-CSK-4	24.305MHz	8PF	20PPM	-10~+70℃
NX5032GA-24.504M-STD-CSK-4	24.504MHz	8PF	20PPM	-10~+70℃
NX5032GA-24.545M-STD-CSK-4	24.545MHz	8PF	20PPM	-10~+70℃
NX5032GA-24.576M-STD-CSK-4	24.576MHz	8PF	20PPM	-10~+70℃
NX5032GA-25.000M-STD-CSK-4	25MHz	8PF	20PPM	-10~+70℃
NX5032GA-25.100M-STD-CSK-4	25.1MHz	8PF	20PPM	-10~+70℃
NX5032GA-25.140M-STD-CSK-4	25.140MHz	8PF	20PPM	-10~+70℃
NX5032GA-25.400M-STD-CSK-4	25.4MHz	8PF	20PPM	-10~+70℃
NX5032GA-26.000M-STD-CSK-4	26MHz	8PF	20PPM	-10~+70℃
NX5032GA-26.973M-STD-CSK-4	26.973MHz	8PF	20PPM	-10~+70℃
NX5032GA-27.000M-STD-CSK-4	27MHz	8PF	20PPM	-10~+70℃
NX5032GA-27.120M-STD-CSK-4	27.12MHz	8PF	20PPM	-10~+70℃
NX5032GA-27.821M-STD-CSK-4	27.821MHz	8PF	20PPM	-10~+70℃
NX5032GA-28.224M-STD-CSK-4	28.224MHz	8PF	20PPM	-10~+70℃
NX5032GA-28.322M-STD-CSK-4	28.322MHz	8PF	20PPM	-10~+70℃
NX5032GA-28.375M-STD-CSK-4	28.375MHz	8PF	20PPM	-10~+70℃
NX5032GA-28.500M-STD-CSK-4	28.5MHz	8PF	20PPM	-10~+70℃
NX5032GA-28.594M-STD-CSK-4	28.594MHz	8PF	20PPM	-10~+70℃
NX5032GA-28.636M-STD-CSK-4	28.636MHz	8PF	20PPM	-10~+70℃
NX5032GA-29.491M-STD-CSK-4	29.491MHz	8PF	20PPM	-10~+70℃
NX5032GA-29.499M-STD-CSK-4	29.499MHz	8PF	20PPM	-10~+70℃
NX5032GA-30.000M-STD-CSK-4	30MHz	8PF	20PPM	-10~+70℃
NX5032GA-30.080M-STD-CSK-4	30.08MHz	8PF	20PPM	-10~+70℃
NX5032GA-30.400M-STD-CSK-4	30.4MHz	8PF	20PPM	-10~+70℃
NX5032GA-32.000M-STD-CSK-4	32MHz	8PF	20PPM	-10~+70℃
NX5032GA-32.110M-STD-CSK-4	32.11MHz	8PF	20PPM	-10~+70℃
NX5032GA-32.720M-STD-CSK-4	32.72MHz	8PF	20PPM	-10~+70℃
NX5032GA-32.768M-STD-CSK-4	32.768MHz	8PF	20PPM	-10~+70℃
NX5032GA-33.000M-STD-CSK-4	33MHz	8PF	20PPM	-10~+70℃
NX5032GA-33.231M-STD-CSK-4	33.231MHz	8PF	20PPM	-10~+70℃
NX5032GA-33.330M-STD-CSK-4	33.33MHz	8PF	20PPM	-10~+70℃
NX5032GA-33.333M-STD-CSK-4	33.333MHz	8PF	20PPM	-10~+70℃
NX5032GA-33.750M-STD-CSK-4	33.75MHz	8PF	20PPM	-10~+70℃
NX5032GA-33.869M-STD-CSK-4	33.869MHz	8PF	20PPM	-10~+70℃
NX5032GA-35.000M-STD-CSK-4	35MHz	8PF	20PPM	-10~+70℃
NX5032GA-35.280M-STD-CSK-4	35.28MHz	8PF	20PPM	-10~+70℃
NX5032GA-35.469M-STD-CSK-4	35.469MHz	8PF	20PPM	-10~+70℃
NX5032GA-36.000M-STD-CSK-4	36MHz	8PF	20PPM	-10~+70℃
NX5032GA-36.444M-STD-CSK-4	36.444MHz	8PF	20PPM	-10~+70℃
NX5032GA-36.864M-STD-CSK-4	36.864MHz	8PF	20PPM	-10~+70℃
NX5032GA-37.000M-STD-CSK-4	37MHz	8PF	20PPM	-10~+70℃
NX5032GA-37.050M-STD-CSK-4	37.05MHz	8PF	20PPM	-10~+70℃
NX5032GA-37.125M-STD-CSK-4	37.125MHz	8PF	20PPM	-10~+70℃
NX5032GA-37.500M-STD-CSK-4	37.5MHz	8PF	20PPM	-10~+70℃
NX5032GA-38.000M-STD-CSK-4	38MHz	8PF	20PPM	-10~+70℃
NX5032GA-38.035M-STD-CSK-4	38.035MHz	8PF	20PPM	-10~+70℃
NX5032GA-38.400M-STD-CSK-4	38.4MHz	8PF	20PPM	-10~+70℃
NX5032GA-40.000M-STD-CSK-4	40MHz	8PF	20PPM	-10~+70℃
NX5032GA-40.500M-STD-CSK-4	40.5MHz	8PF	20PPM	-10~+70℃
NX5032GA-41.600M-STD-CSK-4	41.6MHz	8PF	20PPM	-10~+70℃
NX5032GA-41.850M-STD-CSK-4	41.85MHz	8PF	20PPM	-10~+70℃
NX5032GA-42.000M-STD-CSK-4	42MHz	8PF	20PPM	-10~+70℃
NX5032GA-43.200M-STD-CSK-4	43.2MHz	8PF	20PPM	-10~+70℃
NX5032GA-44.000M-STD-CSK-4	44MHz	8PF	20PPM	-10~+70℃
NX5032GA-45.000M-STD-CSK-4	45MHz	8PF	20PPM	-10~+70℃
NX5032GA-45.158M-STD-CSK-4	45.158MHz	8PF	20PPM	-10~+70℃
NX5032GA-48.000M-STD-CSK-4	48MHz	8PF	20PPM	-10~+70℃
NX5032GA-49.091M-STD-CSK-4	49.091MHz	8PF	20PPM	-10~+70℃
NX5032GA-49.152M-STD-CSK-4	49.152MHz	8PF	20PPM	-10~+70℃
NX5032GA-50.000M-STD-CKW-3	50MHz	8PF	20PPM	-10~+70℃
NX5032GA-52.903M-STD-CKW-3	52.903MHz	8PF	20PPM	-10~+70℃
NX5032GA-54.000M-STD-CKW-3	54MHz	8PF	20PPM	-10~+70℃
NX5032GA-8.000M-STD-CSK-7	8MHz	8PF	30PPM	-40~+85℃
NX5032GA-8.192M-STD-CSK-7	8.192MHz	8PF	30PPM	-40~+85℃
NX5032GA-9.000M-STD-CSK-7	9MHz	8PF	30PPM	-40~+85℃
NX5032GA-9.216M-STD-CSK-7	9.216MHz	8PF	30PPM	-40~+85℃
NX5032GA-9.844M-STD-CSK-7	9.844MHz	8PF	30PPM	-40~+85℃
NX5032GA-10.000M-STD-CSK-7	10MHz	8PF	30PPM	-40~+85℃
NX5032GA-10.178M-STD-CSK-7	10.178MHz	8PF	30PPM	-40~+85℃
NX5032GA-10.240M-STD-CSK-7	10.24MHz	8PF	30PPM	-40~+85℃
NX5032GA-11.059M-STD-CSK-8	11.059MHz	8PF	30PPM	-40~+85℃
NX5032GA-12.000M-STD-CSK-8	12MHz	8PF	30PPM	-40~+85℃
NX5032GA-12.288M-STD-CSK-8	12.288MHz	8PF	30PPM	-40~+85℃
NX5032GA-13.56M-STD-CSK-8	13.56MHz	8PF	30PPM	-40~+85℃
NX5032GA-14.318M-STD-CSK-8	14.318MHz	8PF	30PPM	-40~+85℃
NX5032GA-14.746M-STD-CSK-8	14.7456MHz	8PF	30PPM	-40~+85℃
NX5032GA-15.000M-STD-CSK-8	15MHz	8PF	30PPM	-40~+85℃
NX5032GA-16.000M-STD-CSK-8	16MHz	8PF	30PPM	-40~+85℃
NX5032GA-16.384M-STD-CSK-8	16.384MHz	8PF	30PPM	-40~+85℃
NX5032GA-18.000M-STD-CSK-8	18MHz	8PF	30PPM	-40~+85℃
NX5032GA-18.432M-STD-CSK-8	18.432MHz	8PF	30PPM	-40~+85℃
NX5032GA-20.000M-STD-CSK-8	20MHz	8PF	30PPM	-40~+85℃
NX5032GA-24.000M-STD-CSK-8	24MHz	8PF	30PPM	-40~+85℃
NX5032GA-24.576M-STD-CSK-8	24.576MHz	8PF	30PPM	-40~+85℃
NX5032GA-25.000M-STD-CSK-8	25MHz	8PF	30PPM	-40~+85℃
NX5032GA-27.000M-STD-CSK-8	27MHz	8PF	30PPM	-40~+85℃
NX5032GA-27.120M-STD-CSK-8	27.12MHz	8PF	30PPM	-40~+85℃
NX5032GA-30.000M-STD-CSK-8	30MHz	8PF	30PPM	-40~+85℃
NX5032GA-40.000M-STD-CSK-8	40MHz	8PF	30PPM	-40~+85℃
NX5032GA-48.000M-STD-CSK-8	48MHz	8PF	30PPM	-40~+85℃
NX5032GA-8.000M-STD-CSU-1	8MHz	8PF	50PPM	-40~+150℃
NX5032GA-8.192M-STD-CSU-1	8.192MHz	8PF	50PPM	-40~+150℃
NX5032GA-9.844M-STD-CSU-1	9.844MHz	8PF	50PPM	-40~+150℃
NX5032GA-10.000M-STD-CSU-1	10MHz	8PF	50PPM	-40~+150℃
NX5032GA-12.000M-STD-CSU-2	12MHz	8PF	50PPM	-40~+150℃
NX5032GA-13.560M-STD-CSU-2	13.56MHz	8PF	50PPM	-40~+150℃
NX5032GA-14.000M-STD-CSU-2	14MHz	8PF	50PPM	-40~+150℃
NX5032GA-15.000M-STD-CSU-2	15MHz	8PF	50PPM	-40~+150℃
NX5032GA-16.000M-STD-CSU-2	16MHz	8PF	50PPM	-40~+150℃
NX5032GA-18.000M-STD-CSU-2	18MHz	8PF	50PPM	-40~+150℃
NX5032GA-19.661M-STD-CSU-2	19.661MHz	8PF	50PPM	-40~+150℃
NX5032GA-20.000M-STD-CSU-2	20MHz	8PF	50PPM	-40~+150℃
NX5032GA-24.000M-STD-CSU-2	24MHz	8PF	50PPM	-40~+150℃
NX5032GA-24.740M-STD-CSU-2	27.74MHz	8PF	50PPM	-40~+150℃
NX5032GA-25.000M-STD-CSU-2	25MHz	8PF	50PPM	-40~+150℃
NX5032GA-30.000M-STD-CSU-2	30MHz	8PF	50PPM	-40~+150℃
NX5032GA-40.000M-STD-CSU-2	40MHz	8PF	50PPM	-40~+150℃
