CX3225SB12000D0GZJC1,12MHz晶振,3225晶振,8PF,15PPM, -

当前位置: 首页» 加科电子产品中心» 晶振规格书» CX3225SB12000D0GZJC1,12MHz晶振,3225晶振,8PF,15PPM,

prev next

查看全部大图

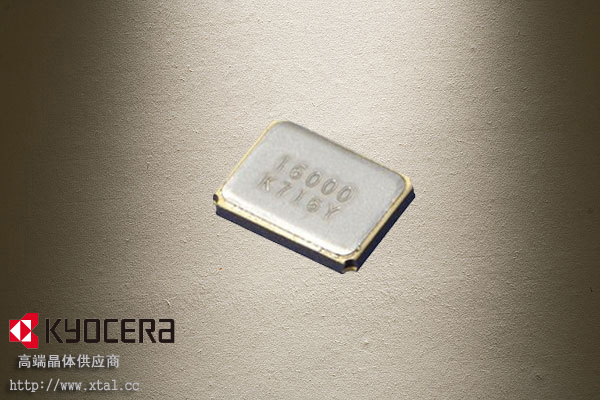

CX3225SB12000D0GZJC1,12MHz晶振,3225晶振,8PF,15PPM,

产品分类：晶振规格书

特征用于消费产品的晶体单元微型、低轮廓（3.2×2.5×0.55毫米）陶瓷封装回流兼容AEC-Q200资格（请与我们联系汽车使用）应用：数码电子消费产品汽车电子移动通信、蓝牙, 无线局域网蓝牙。

订购热线： 0755-33533774

跟此产品相关的产品

: 12MHz晶振 3225封装 CX3225SB12000D0GZJC1 8PF 15PPM kyocera

: 12MHz晶振 CX3225SB12000D0GZJC1 8PF晶振 15PPM

: 12MHz晶振 3225晶振 CX3225SB12000D0GZJC1 8PF 15PPM晶振

产品详情

料号	频率	频率稳定性	频率容差	负载电容	工作温度
CX3225SB54000H0FLJCC	54MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB19200D0FPLCC	19.2MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB20000H0FLJCC	20MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB32000D0PSTC1	32MHz	±100ppm	±50ppm	8pF	-40°C ~ 125°C
CX3225SB12000D0GZJC1	12MHz	±15ppm	±15ppm	8pF	-25°C ~ 85°C
CX3225SB48000D0FLJCC	48MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB27000D0FLJCC	27MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB26000D0FLJCC	26MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB16000D0FLJZZ	16MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB30000H0FLJCC	30MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB16000D0FPLCC	16MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB26000H0FLJCC	26MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX101F-040.000-H0445	40MHz	±18ppm	-	12pF	0°C ~ 85°C
CX3225SB40000D0FFFCC	40MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB24576D0FLJCC	24.576MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB38400D0FFFCC	38.4MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB25000D0FFFCC	25MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB24000H0PSTC1	24MHz	±100ppm	±50ppm	12pF	-40°C ~ 125°C
CX3225SB30000D0FPLCC	30MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB40000D0FLJCC	40MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB38400D0FPLCC	38.4MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB24576H0FLJCC	24.576MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB16000H0FLJCC	16MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB48000D0FPJC1	48MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB32000H0FLJCC	32MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB32000D0FPLCC	32MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB16000D0GZJC1	16MHz	±15ppm	±15ppm	8pF	-25°C ~ 85°C
CX3225SB14745H0KPQCC	14.745MHz	-	±30ppm	12pF	-40°C ~ 85°C
CX3225SB54000D0FLJCC	54MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB25000D0FPLCC	25MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB12000D0FFJCC	12MHz	±15ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB30000D0FLJCC	30MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB32000D0FLJCC	32MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB27000H0FLJCC	27MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB27000D0FFFCC	27MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB16000H0PSTC1	16MHz	±100ppm	±50ppm	12pF	-40°C ~ 125°C
CX3225SB12000H0PSTC1	12MHz	±100ppm	±50ppm	12pF	-40°C ~ 125°C
CX3225SB12288D0FLJCC	12.288MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB19200H0FLJCC	19.2MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB48000D0FPLCC	48MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB27000D0FPLCC	27MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB40000H0FLJCC	40MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB19200D0FLJCC	19.2MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB24000D0FFJCC	24MHz	±15ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB24000D0FPLCC	24MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB24000H0FLJCC	24MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB20000D0FPLCC	20MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB20000D0FLJCC	20MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB12000H0FLJCC	12MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB25000H0FLJCC	25MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB24000D0FFJCC	24MHz	±15ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB40000D0FPLCC	40MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB48000D0WPSC1	48MHz	±50ppm	-	8pF	-40°C ~ 85°C
CX3225SB12000D0FLJCC	12MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB13560H0FLJCC	13.56MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB13560D0FLJCC	13.56MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB48000H0FLJCC	48MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB26000D0FFFCC	26MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB48000D0FFFCC	48MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB54000D0WPSC1	54MHz	±30ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB49152F0HELC1	49.152MHz	±20ppm	±20ppm	10pF	-10°C ~ 70°C
CX3225SB12000D0FPNCC	12MHz	±25ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB32000D0FFFCC	32MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
CX3225SB25000H0FLJCC	25MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB13560D0FPLCC	13.56MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB12288H0FLJCC	12.288MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB20000D0FPLCC	20MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB20000D0FLJCC	20MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB24000H0FLJCC	24MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB12000H0FLJCC	12MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB49152D0FLJCC	49.152MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB48000D0WPTC1	48MHz	±100ppm	-	8pF	-40°C ~ 85°C
CX3225SB32000D0GPSCC	32MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB49152H0FLJCC	49.152MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB54000D0WPTC1	54MHz	±100ppm	±50ppm	8pF	-40°C ~ 85°C
CX3225SB27000D0FLJZ1	27MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB13560D0GEJC1	13.56MHz	-	±15ppm	8pF	-10°C ~ 70°C
CX3225SB12288D0GPSCC	12.288MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB19200D0GPSCC	19.2MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB27000D0GPSCC	27MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB16000D0GPSCC	16MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB40000D0GPSCC	40MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB25000D0KPSC1	25MHz	±50ppm	±30ppm	8pF	-40°C ~ 85°C
CX3225SB38400D0FLJCC	38.4MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB25000D0FLJZ1	25MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB38400H0FLJCC	38.4MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB12000D0GPSCC	12MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB26000D0GPSCC	26MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB54000D0WPSC2	54MHz	±30ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB30000D0GPSCC	30MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB48000D0FPJC2	48MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB54000D0FPJC1	54MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
CX3225SB54000D0WPSC3	54MHz	±50ppm	±50ppm	8pF	-40°C ~ 85°C
CX3225SB25000D0GPSCC	25MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB38400D0GPSCC	38.4MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB48000D0GPSCC	48MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB13560D0GPSCC	13.56MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB20000D0GPSCC	20MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB54000D0GPSCC	54MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB49152D0GPSCC	49.152MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB54000D0GPSCC	54MHz	±50ppm	±15ppm	8pF	-40°C ~ 85°C
CX3225SB49152H0FLJCC	49.152MHz	±15ppm	±10ppm	12pF	-30°C ~ 85°C
CX3225SB54000D0WPTC1	54MHz	±100ppm	±50ppm	8pF	-40°C ~ 85°C
CX3225SB27000D0FLJZ1	27MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
CX3225SB13560D0GEJC1	13.56MHz	-	±15ppm	8pF	-10°C ~ 70°C
