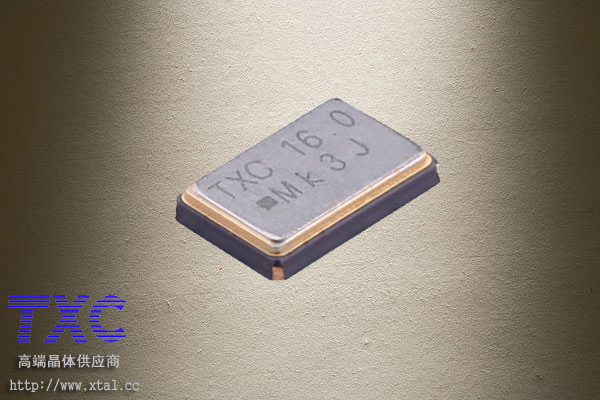

7B-16.000MAAE-T

产品分类：晶振规格书

订购热线：0755-33533774

跟此产品相关的产品

产品详情

料号	品牌	频率	频率稳定性	频率容差	负载电容	ESR电阻	工作温度
7B-11.0592MAAQ-T	TXC晶振	11.0592 MHz	±30ppm	±30ppm	10pF	100 Ohms	-20°C ~ 70°C
7B-12.000MAGJ-T	TXC晶振	12 MHz	±50ppm	±30ppm	18pF	100 Ohms	-40°C ~ 85°C
7B-12.000MAHJ-T	TXC晶振	12 MHz	±30ppm	±30ppm	18pF	100 Ohms	-40°C ~ 85°C
7B-16.000MAHJ-T	TXC晶振	16 MHz	±30ppm	±30ppm	18pF	40 Ohms	-40°C ~ 85°C
7B-18.432MDIK-T	TXC晶振	18.432 MHz	±20ppm	±20ppm	20pF	40 Ohms	-40°C ~ 85°C
7B-22.000MBBK-T	TXC晶振	22 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-22.1184MBBK-T	TXC晶振	22.1184 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-24.000MEHQ-T	TXC晶振	24 MHz	±30ppm	±30ppm	10pF	40 Ohms	-40°C ~ 85°C
7B-25.000MABI-T	TXC晶振	25 MHz	±50ppm	±30ppm	16pF	40 Ohms	-20°C ~ 70°C
7B-25.000MAGJ-T	TXC晶振	25 MHz	±50ppm	±30ppm	18pF	40 Ohms	-40°C ~ 85°C
7B-25.000MAHJ-T	TXC晶振	25 MHz	±30ppm	±30ppm	18pF	40 Ohms	-40°C ~ 85°C
7B-26.000MDDI-T	TXC晶振	26 MHz	±20ppm	±20ppm	16pF	40 Ohms	-20°C ~ 70°C
7B-8.000MAGJ-T	TXC晶振	8 MHz	±50ppm	±30ppm	18pF	100 Ohms	-40°C ~ 85°C
7B-8.000MAHJ-T	TXC晶振	8 MHz	±30ppm	±30ppm	18pF	100 Ohms	-40°C ~ 85°C
7B-8.000MDBJ-T	TXC晶振	8 MHz	±50ppm	±20ppm	18pF	100 Ohms	-20°C ~ 70°C
7B-16.000MAAE-T	TXC晶振	16 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-12.000MEEQ-T	TXC晶振	12 MHz	±10ppm	±10ppm	10pF	100 Ohms	-20°C ~ 70°C
7B-48.000MAAE-T	TXC晶振	48 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-30.000MBBK-T	TXC晶振	30 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-12.288MAAE-T	TXC晶振	12.288 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-19.200MEEQ-T	TXC晶振	19.2 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-18.432MEEQ-T	TXC晶振	18.432 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-14.7456MAAJ-T	TXC晶振	14.7456 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-32.000MAAJ-T	TXC晶振	32 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-16.384MAAJ-T	TXC晶振	16.384 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-11.0592MAAJ-T	TXC晶振	11.0592 MHz	±30ppm	±30ppm	18pF	100 Ohms	-20°C ~ 70°C
7B-12.000MAAJ-T	TXC晶振	12 MHz	±30ppm	±30ppm	18pF	100 Ohms	-20°C ~ 70°C
7B-12.288MAAJ-T	TXC晶振	12.288 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-13.000MAAJ-T	TXC晶振	13 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-14.31818MAAJ-T	TXC晶振	14.31818 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-16.000MAAJ-T	TXC晶振	16 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-16.9344MAAJ-T	TXC晶振	16.9344 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-18.432MAAJ-T	TXC晶振	18.432 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-19.200MAAJ-T	TXC晶振	19.2 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-20.000MAAJ-T	TXC晶振	20 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-24.000MAAJ-T	TXC晶振	24 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-24.576MAAJ-T	TXC晶振	24.576 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-25.000MAAJ-T	TXC晶振	25 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-26.000MAAJ-T	TXC晶振	26 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-27.000MAAJ-T	TXC晶振	27 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-28.63636MAAJ-T	TXC晶振	28.63636 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-30.000MAAJ-T	TXC晶振	30 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-36.000MAAJ-T	TXC晶振	36 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-40.000MAAJ-T	TXC晶振	40 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-48.000MAAJ-T	TXC晶振	48 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-12.288MEEQ-T	TXC晶振	12.288 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-13.000MEEQ-T	TXC晶振	13 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-13.560MEEQ-T	TXC晶振	13.56 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-14.31818MEEQ-T	TXC晶振	14.31818 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-14.7456MEEQ-T	TXC晶振	14.7456 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-16.000MEEQ-T	TXC晶振	16 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-16.384MEEQ-T	TXC晶振	16.384 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-16.9344MEEQ-T	TXC晶振	16.9344 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-20.000MEEQ-T	TXC晶振	20 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-24.000MEEQ-T	TXC晶振	24 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-24.576MEEQ-T	TXC晶振	24.576 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-25.000MEEQ-T	TXC晶振	25 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-26.000MEEQ-T	TXC晶振	26 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-27.000MEEQ-T	TXC晶振	27 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-27.120MEEQ-T	TXC晶振	27.12 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-28.63636MEEQ-T	TXC晶振	28.63636 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-30.000MEEQ-T	TXC晶振	30 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-32.000MEEQ-T	TXC晶振	32 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-36.000MEEQ-T	TXC晶振	36 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-40.000MEEQ-T	TXC晶振	40 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-48.000MEEQ-T	TXC晶振	48 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-13.560MAAJ-T	TXC晶振	13.56 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-27.120MAAJ-T	TXC晶振	27.12 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-10.000MAAJ-T	TXC晶振	10 MHz	±30ppm	±30ppm	18pF	100 Ohms	-20°C ~ 70°C
7B-29.4912MAAJ-T	TXC晶振	29.4912 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-50.000MAAJ-T	TXC晶振	50 MHz	±30ppm	±30ppm	18pF	120 Ohms	-20°C ~ 70°C
7B-8.000MAAJ-T	TXC晶振	8 MHz	±30ppm	±30ppm	18pF	100 Ohms	-20°C ~ 70°C
7B-10.000MEEQ-T	TXC晶振	10 MHz	±10ppm	±10ppm	10pF	100 Ohms	-20°C ~ 70°C
7B-37.500MEEE-T	TXC晶振	37.5 MHz	±10ppm	±10ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-15.360MEEQ-T	TXC晶振	15.36 MHz	±10ppm	±10ppm	10pF	40 Ohms	-20°C ~ 70°C
7B-10.000MBBK-T	TXC晶振	10 MHz	±50ppm	±50ppm	20pF	100 Ohms	-20°C ~ 70°C
7B-11.0592MAAE-T	TXC晶振	11.0592 MHz	±30ppm	±30ppm	12pF	100 Ohms	-20°C ~ 70°C
7B-11.0592MBBK-T	TXC晶振	11.0592 MHz	±50ppm	±50ppm	20pF	100 Ohms	-20°C ~ 70°C
7B-11.2896MBBK-T	TXC晶振	11.2896 MHz	±50ppm	±50ppm	20pF	100 Ohms	-20°C ~ 70°C
7B-12.000MBBK-T	TXC晶振	12 MHz	±50ppm	±50ppm	20pF	100 Ohms	-20°C ~ 70°C
7B-13.000MAAE-T	TXC晶振	13 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-13.560MBBK-T	TXC晶振	13.56 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-14.7456MAAE-T	TXC晶振	14.7456 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-14.7456MBBK-T	TXC晶振	14.7456 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-15.360MAAE-T	TXC晶振	15.36 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-15.360MBBK-T	TXC晶振	15.36 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-16.000MBBK-T	TXC晶振	16 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-16.384MAAE-T	TXC晶振	16.384 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-16.9344MAAE-T	TXC晶振	16.9344 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-16.9344MBBK-T	TXC晶振	16.9344 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-18.432MAAE-T	TXC晶振	18.432 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-20.000MBBK-T	TXC晶振	20 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-24.000MAAE-T	TXC晶振	24 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-24.000MBBK-T	TXC晶振	24 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-25.000MBBK-T	TXC晶振	25 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-26.000MAAE-T	TXC晶振	26 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-26.000MBBK-T	TXC晶振	26 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-27.120MAAE-T	TXC晶振	27.12 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-27.120MBBK-T	TXC晶振	27.12 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-28.63636MAAE-T	TXC晶振	28.63636 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-28.63636MBBK-T	TXC晶振	28.63636 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-29.4912MAAE-T	TXC晶振	29.4912 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-29.4912MBBK-T	TXC晶振	29.4912 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-30.000MAAE-T	TXC晶振	30 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-32.000MBBK-T	TXC晶振	32 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-40.000MBBK-T	TXC晶振	40 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-48.000MBBK-T	TXC晶振	48 MHz	±50ppm	±50ppm	20pF	120 Ohms	-20°C ~ 70°C
7B-50.000MAAE-T	TXC晶振	50 MHz	±30ppm	±30ppm	12pF	120 Ohms	-20°C ~ 70°C
7B-50.000MBBK-T	TXC晶振	50 MHz	±50ppm	±50ppm	20pF	120 Ohms	-20°C ~ 70°C
7B-8.000MAAE-T	TXC晶振	8 MHz	±30ppm	±30ppm	12pF	100 Ohms	-20°C ~ 70°C
7B-8.000MBBK-T	TXC晶振	8 MHz	±50ppm	±50ppm	20pF	100 Ohms	-20°C ~ 70°C
7B-10.000MAAE-T	TXC晶振	10 MHz	±30ppm	±30ppm	12pF	100 Ohms	-20°C ~ 70°C
7B-14.31818MAAE-T	TXC晶振	14.31818 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-19.200MAAE-T	TXC晶振	19.2 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-24.576MAAE-T	TXC晶振	24.576 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-36.000MAAE-T	TXC晶振	36 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-40.000MAAE-T	TXC晶振	40 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-12.288MBBK-T	TXC晶振	12.288 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-13.000MBBK-T	TXC晶振	13 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-14.31818MBBK-T	TXC晶振	14.31818 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-16.384MBBK-T	TXC晶振	16.384 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-18.432MBBK-T	TXC晶振	18.432 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-19.200MBBK-T	TXC晶振	19.2 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-24.576MBBK-T	TXC晶振	24.576 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-27.000MBBK-T	TXC晶振	27 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-36.000MBBK-T	TXC晶振	36 MHz	±50ppm	±50ppm	20pF	40 Ohms	-20°C ~ 70°C
7B-11.2896MAAE-T	TXC晶振	11.2896 MHz	±30ppm	±30ppm	12pF	100 Ohms	-20°C ~ 70°C
7B-11.2896MAAJ-T	TXC晶振	11.2896 MHz	±30ppm	±30ppm	18pF	100 Ohms	-20°C ~ 70°C
7B-12.000MAAE-T	TXC晶振	12 MHz	±30ppm	±30ppm	12pF	100 Ohms	-20°C ~ 70°C
7B-13.560MAAE-T	TXC晶振	13.56 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-15.360MAAJ-T	TXC晶振	15.36 MHz	±30ppm	±30ppm	18pF	40 Ohms	-20°C ~ 70°C
7B-20.000MAAE-T	TXC晶振	20 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-25.000MAAE-T	TXC晶振	25 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-27.000MAAE-T	TXC晶振	27 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
7B-32.000MAAE-T	TXC晶振	32 MHz	±30ppm	±30ppm	12pF	40 Ohms	-20°C ~ 70°C
