7A-8.000MAAJ-T 8MHz晶振 TXC晶振 5032晶振 18PF 30PPM -

当前位置: 首页» 加科电子产品中心» 晶振规格书» 7A-8.000MAAJ-T 8MHz晶振 TXC晶振 5032晶振 18PF 30PPM

prev next

查看全部大图

7A-8.000MAAJ-T 8MHz晶振 TXC晶振 5032晶振 18PF 30PPM

产品分类：晶振规格书

订购热线： 0755-33533774

跟此产品相关的产品

产品详情

7A晶振

料号	频率	频率稳定性	负载电容	ESR等效串联电阻	工作温度
7A-8.000MBBK-T	8 MHz	±50ppm	20pF	80 Ohms	-20°C ~ 70°C
7A-8.000MBGJ-T	8 MHz	±50ppm	18pF	80 Ohms	-40°C ~ 85°C
7A-8.000MBGV-T	8 MHz	±50ppm	8pF	80 Ohms	-40°C ~ 85°C
7A-8.000MDHK-T	8 MHz	±20ppm	20pF	80 Ohms	-40°C ~ 125°C
7A-8.192MBGJ-T	8.192MHz	±50ppm	18pF	80 Ohms	-40°C ~ 85°C
7A-10.000MAAE-T	10 MHz	±30ppm	12pF	80 Ohms	-20°C ~ 70°C
7A-10.000MAAI-T	10 MHz	±30ppm	16pF	80 Ohms	-20°C ~ 70°C
7A-10.000MAAJ-T	10 MHz	±30ppm	18pF	80 Ohms	-20°C ~ 70°C
7A-10.000MAAK-T	10 MHz	±30ppm	20pF	80 Ohms	-20°C ~ 70°C
7A-10.000MAAQ-T	10 MHz	±30ppm	10pF	80 Ohms	-20°C ~ 70°C
7A-10.000MAAV-T	10 MHz	±30ppm	8pF	80 Ohms	-20°C ~ 70°C
7A-10.000MAHE-T	10 MHz	±30ppm	12pF	80 Ohms	-40°C ~ 85°C
7A-10.000MBBK-T	10 MHz	±50ppm	20pF	80 Ohms	-20°C ~ 70°C
7A-10.000MBGJ-T	10 MHz	±50ppm	18pF	80 Ohms	-40°C ~ 85°C
7A-11.0592MAAE-T	11.0592 MHz	±30ppm	12pF	80 Ohms	-20°C ~ 70°C
7A-11.0592MAAJ-T	11.0592 MHz	±30ppm	18pF	80 Ohms	-20°C ~ 70°C
7A-11.0592MAHE-T	11.0592 MHz	±30ppm	12pF	80 Ohms	-40°C ~ 85°C
7A-11.0592MBBK-T	11.0592 MHz	±50ppm	20pF	80 Ohms	-20°C ~ 70°C
7A-12-.000MAAK-T	12 MHz	±30ppm	20pF	80 Ohms	-20°C ~ 70°C
7A-12.000MAAE-T	12 MHz	±30ppm	12pF	80 Ohms	-20°C ~ 70°C
7A-12.000MAAI-T	12 MHz	±30ppm	16pF	80 Ohms	-20°C ~ 70°C
7A-12.000MAAJ-T	12 MHz	±30ppm	18pF	80 Ohms	-20°C ~ 70°C
7A-12.000MAAK-T	12 MHz	±30ppm	20pF	80 Ohms	-20°C ~ 70°C
7A-12.000MAAQ-T	12 MHz	±30ppm	10pF	80 Ohms	-20°C ~ 70°C
7A-12.000MAAV-T	12 MHz	±30ppm	8pF	80 Ohms	-20°C ~ 70°C
7A-12.000MAHE-T	12 MHz	±30ppm	12pF	80 Ohms	-40°C ~ 85°C
7A-12.000MAHJ-T	12 MHz	±30ppm	18pF	80 Ohms	-40°C ~ 85°C
7A-12.000MAHK-T	12 MHz	±30ppm	20pF	80 Ohms	-40°C ~ 85°C
7A-12.000MBBK-T	12 MHz	±50ppm	20pF	80 Ohms	-20°C ~ 70°C
7A-12.000MBGJ-T	12 MHz	±50ppm	18pF	80 Ohms	-40°C ~ 85°C
7A-12.00MAHJ-T	12 MHz	±30ppm	8pF	80 Ohms	-40°C ~ 85°C
7A-12.288MAAE-T	12.288 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-12.288MAAJ-T	12.288 MHz	±30ppm	18pF	80 Ohms	-20°C ~ 70°C
7A-12.288MAAK-T	12.288 MHz	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-12.288MAAV-T	12.288 MHz	±30ppm	8pF	50 Ohms	-20°C ~ 70°C
7A-12.288MAHE-T	12.288 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-12.288MAHK-T	12.288 MHz	±30ppm	20pF	50 Ohms	-40°C ~ 85°C
7A-12.288MBBK-T	12.288 MHz	±50ppm	20pF	80 Ohms	-20°C ~ 70°C
7A-12.288MBGJ-T	12.288 MHz	±50ppm	18pF	50 Ohms	-40°C ~ 85°C
7A-13.000MAHE-T	13 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-13.000MAHJ-T	13 MHz	±30ppm	18pF	50 Ohms	-40°C ~ 85°C
7A-13.000MBGJ-T	13 MHz	±50ppm	18pF	50 Ohms	-40°C ~ 85°C
7A-13.560MAAE-T	13.56 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-13.560MAAJ-T	13.56 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A-13.560MAHE-T	13.56 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-13.560MBBK-T	13.56 MHz	±50ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-14.318180MAAI-T	14.31818 MHz	±30ppm	16pF	50 Ohms	-20°C ~ 70°C
7A-14.31818MAAE-T	14.31818 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-14.31818MAAI-T	14.3181 MHz	±30ppm	16pF	50 Ohms	-20°C ~ 70°C
7A-14.31818MAAJ-T	14.31818 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A-14.31818MAAK-T	14.31818 MHz	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-14.31818MAGK-T	14.3181 MHz	±50ppm	20pF	50 Ohms	-40°C ~ 85°C
7A-14.31818MAHE-T	14.31818 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-14.31818MAHK-T	14.3181 MHz	±30ppm	20pF	50 Ohms	-40°C ~ 85°C
7A-14.31818MBBK-T	14.31818 MHz	±50ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-14.7456MAAE-T	14.7456 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-14.7456MAAJ-T	14.7456 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A-14.7456MAAK-T	14.7456 MHz	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-14.7456MAHE-T	14.7456 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-14.7456MAHK-T	14.7456 MHz	±30ppm	20pF	50 Ohms	-40°C ~ 85°C
7A-14.7456MBBK-T	14.7456 MHz	±50ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-16.000MAAE-T	16 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-16.000MAAI-T	16 MHz	±30ppm	16pF	50 Ohms	-20°C ~ 70°C
7A-16.000MAAJ-T	16 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A-16.000MAAK-T	16 MHz	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-16.000MAAQ-T	16 MHz	±30ppm	10pF	50 Ohms	-20°C ~ 70°C
7A-16.000MAAV-T	16 MHz	±30ppm	8pF	50 Ohms	-20°C ~ 70°C
7A-16.000MAHE-T	16 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-16.000MAHK-T	16 MHz	±30ppm	20pF	50 Ohms	-40°C ~ 85°C
7A-16.000MBBK-T	16 MHz	±50ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-16.000MDAV-T	16 MHz	±30ppm	8pF	50 Ohms	-20°C ~ 70°C
7A-16.9344MAAE-T	16.9344 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-16.9344MAAJ-T	16.9344 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A-16.9344MAHE-T	16.9344 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-16.9344MBBK-T	16.9344 MHz	±50ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-18.432MAAE-T	18.432 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-18.432MAAJ-T	18.432 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A-18.432MAHE-T	18.432 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-18.432MBBK-T	18.432 MHz	±50ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-19.200MAAE-T	19.2 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-20.000MAAE-T	20 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-20.000MAAI-T	20 MHz	±30ppm	16pF	50 Ohms	-20°C ~ 70°C
7A-20.000MAAJ-T	20 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A-20.000MAAK-T	20 MHz	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-20.000MAAV-T	20 MHz	±30ppm	8pF	50 Ohms	-20°C ~ 70°C
7A-20.000MAHE-T	20 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-20.000MBBK-T	20 MHz	±50ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-22.1184MAAE-T	22.1184 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-22.1184MAAJ-T	22.1184 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A-22.1184MAHE-T	22.1184 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-22.1184MBBK-T	22.1184 MHz	±50ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-24.000MAAE-T	24 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-24.000MAAI-T	24 MHz	±30ppm	16pF	50 Ohms	-20°C ~ 70°C
7A-24.000MAAJ-T	24 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C
7A-24.000MAAK-T	24 MHz	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-24.000MAAQ-T	24 MHz	±30ppm	10pF	50 Ohms	-20°C ~ 70°C
7A-24.000MAAV-T	24 MHz	±30ppm	8pF	50 Ohms	-20°C ~ 70°C
7A-24.000MAGJ-T	24 MHz	±50ppm	18pF	50 Ohms	-40°C ~ 85°C
7A-24.000MAHE-T	24 MHz	±30ppm	12pF	50 Ohms	-40°C ~ 85°C
7A-24.000MAHJ-T	24 MHz	±30ppm	18pF	50 Ohms	-40°C ~ 85°C
7A-24.000MBBK-T	24 MHz	±50ppm	20pF	50 Ohms	-20°C ~ 70°C
7A-24.000MBGJ-T	24 MHz	±50ppm	18pF	50 Ohms	-40°C ~ 85°C
7A-24.576MAAE-T	24.576 MHz	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
7A-24.576MAAI-T	24.576 MHz	±30ppm	16pF	50 Ohms	-20°C ~ 70°C
7A-24.576MAAJ-T	24.576 MHz	±30ppm	18pF	50 Ohms	-20°C ~ 70°C

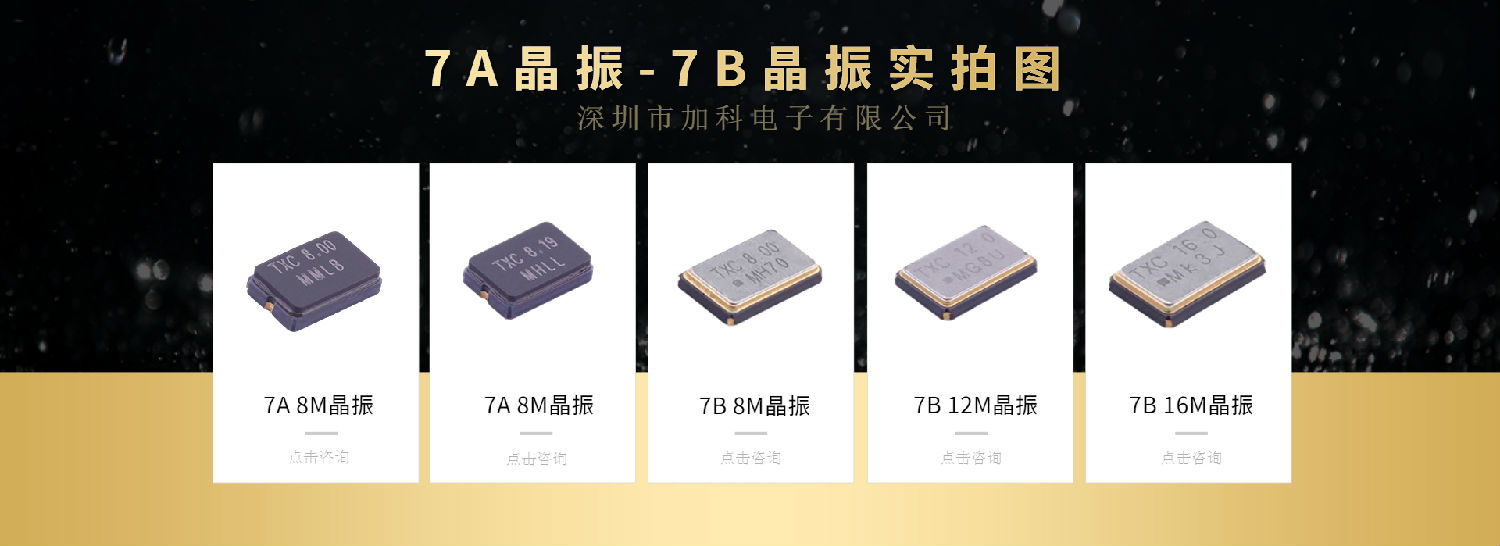

7A晶振和7B 晶振两者的驱动功耗典型值均为10µW,最大不超过100µW,具有易于驱动的优势,可用于低功耗应用场合,便携式电信设备首选,同时7A晶振和7B晶振工作温度范围相同均为-10~70℃,能够满足移动通信设备应用温度范围,具有较高的输出频率,
