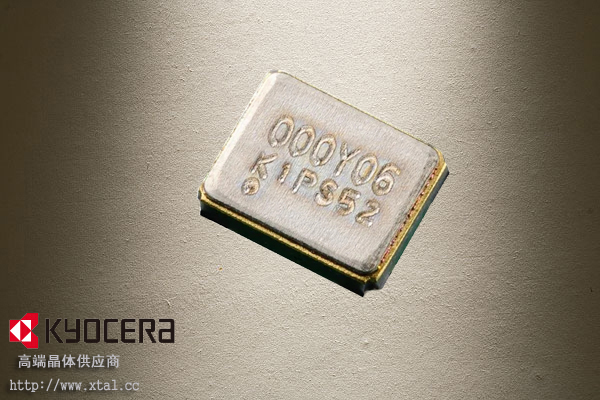

50MHz晶振,KC2016Z50.0000C15XXK,1.71V ~ 3.63V,车载专用京瓷有源晶振

产品分类：晶振规格书

特征：频率范围24至72 MHz,CMOS输出低抖动耐热性高达+125°C应用：消费者/网络/工业/娱乐。

订购热线： 0755-33533774

跟此产品相关的产品

: 50MHz有源晶振 KC2016Z50.0000C15XXK 1.71V ~ 3.63V ±30ppm 京瓷2016晶振

: 50MHz有源晶振 KC2016Z50.0000C15XXK 1.71V ~ 3.63V ±30ppm 京瓷2016晶振

: KC2016Z50.0000C15XXK 50MHz有源晶振 2016封装车载有源晶振

产品详情

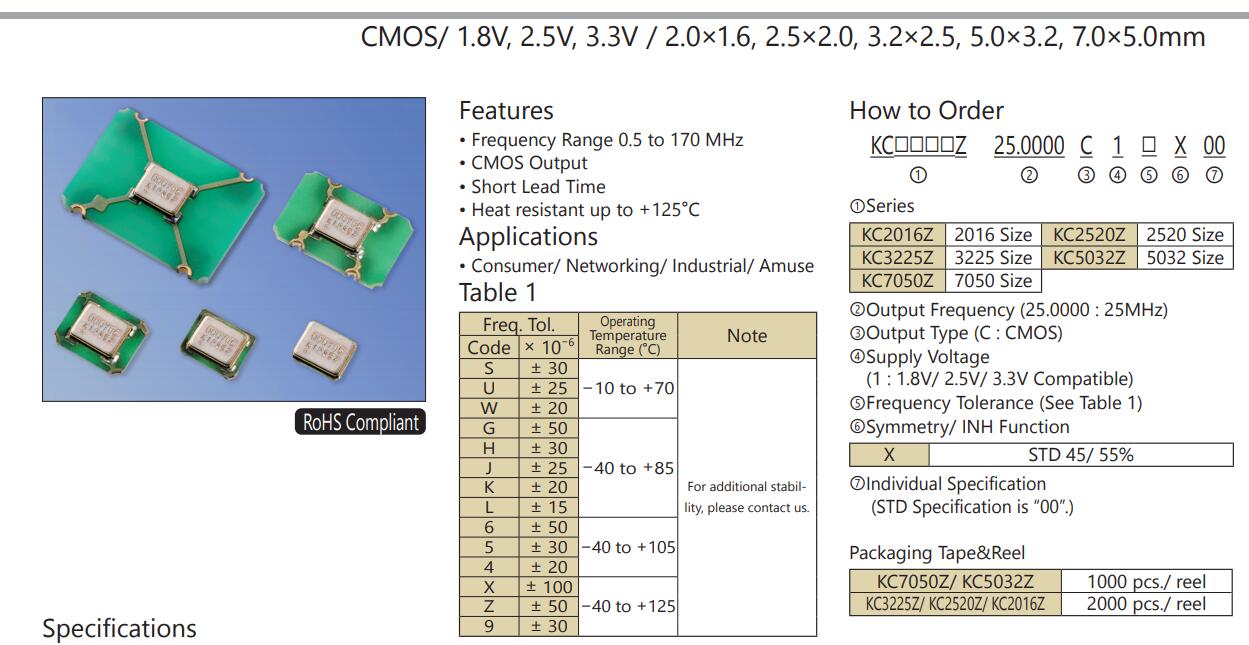

KC2016Z

料号	频率	工作温度	电压	精度
KC2016Z14.3182C15XXK	14.3182MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z11.2896C15XXK	11.2896MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z66.6667C1KX00	66.667MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z24.5760C1KX00	24.576MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z33.3333C15XXK	33.3333MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z4.00000C15XXK	4MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z32.0000C1KX00	32MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z64.0000C15XXK	64MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z64.0000C1KX00	64MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z3.68640C15XXK	3.6864MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z16.0000C15XXK	16MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z13.5600C1KX00	13.56MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z24.5760C15XXK	24.576MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z2.04800C15XXK	2.048MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z32.7680C15XXK	32.768MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z4.00000C1KX00	4MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z60.0000C15XXK	60MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z10.0000C1KX00	10MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z12.2880C1KX00	12.288MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z32.7680C1KX00	32.768MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z18.4320C15XXK	18.432MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z1.84320C15XXK	1.8432MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z28.6364C1KX00	28.6364MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z33.0000C15XXK	33MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z100.000C15XXK	100MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z48.0000C15XXK	48MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z28.6364C15XXK	28.6364MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z1.84320C1KX00	1.8432MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z40.0000C15XXK	40MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z7.37280C1KX00	7.3728MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z24.0000C15XXK	24MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z16.3840C15XXK	16.384MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z8.00000C15XXK	8MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z12.2880C15XXK	12.288MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z11.2896C1KX00	11.2896MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z27.0000C15XXK	27MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z33.0000C1KX00	33MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z22.5792C1KX00	22.5792MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z32.0000C15XXK	32MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z14.7456C1KX00	14.7456MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z7.37280C15XXK	7.3728MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z16.0000C1KX00	16MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z18.4320C1KX00	18.432MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z14.7456C15XXK	14.7456MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z50.0000C15XXK	50MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z100.000C1KX00	100MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z22.5792C15XXK	22.5792MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z80.0000C15XXK	80MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z20.0000C1KX00	20MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z2.04800C1KX00	2.048MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z13.5600C15XXK	13.56MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z14.3182C1KX00	14.3182MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z32.0000C15XXK	32MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z14.7456C1KX00	14.7456MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z33.3333C1KX00	33.3333MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z16.3840C1KX00	16.384MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z75.0000C15XXK	75MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z75.0000C1KX00	75MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z28.6364C15XXK	28.6364MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z1.84320C1KX00	1.8432MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z50.0000C1KX00	50MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z12.0000C1KX00	12MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z10.0000C15XXK	10MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z26.0000C1KX00	26MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z26.0000C15XXK	26MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z20.0000C15XXK	20MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z25.0000C15XXK	25MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z25.0000C1KX00	25MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z12.0000C15XXK	12MHz	-40°C ~ 105°C	1.71V ~ 3.63V	±30ppm
KC2016Z8.00000C1KX00	8MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z24.0000C1KX00	24MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z125.000C1KX00	125MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z48.0000C1KX00	48MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
KC2016Z27.0000C1KX00	27MHz	-40°C ~ 85°C	1.71V ~ 3.63V	±20ppm
