4M晶振,49S晶振,12PF,30PPM,HC-49/U-S4000000ABEB,西铁城晶振 -

当前位置: 首页» 加科电子产品中心» 晶振规格书» 4M晶振,49S晶振,12PF,30PPM,HC-49/U-S4000000ABEB,西铁城晶振

prev next

查看全部大图

4M晶振,49S晶振,12PF,30PPM,HC-49/U-S4000000ABEB,西铁城晶振

产品分类：晶振规格书

特征频率范围：3.5～50.0MHｚ外形尺寸（mm）长：11.5 x宽：4.66 x高：3.5 应用：消费品

订购热线： 0755-33533774

跟此产品相关的产品

产品详情

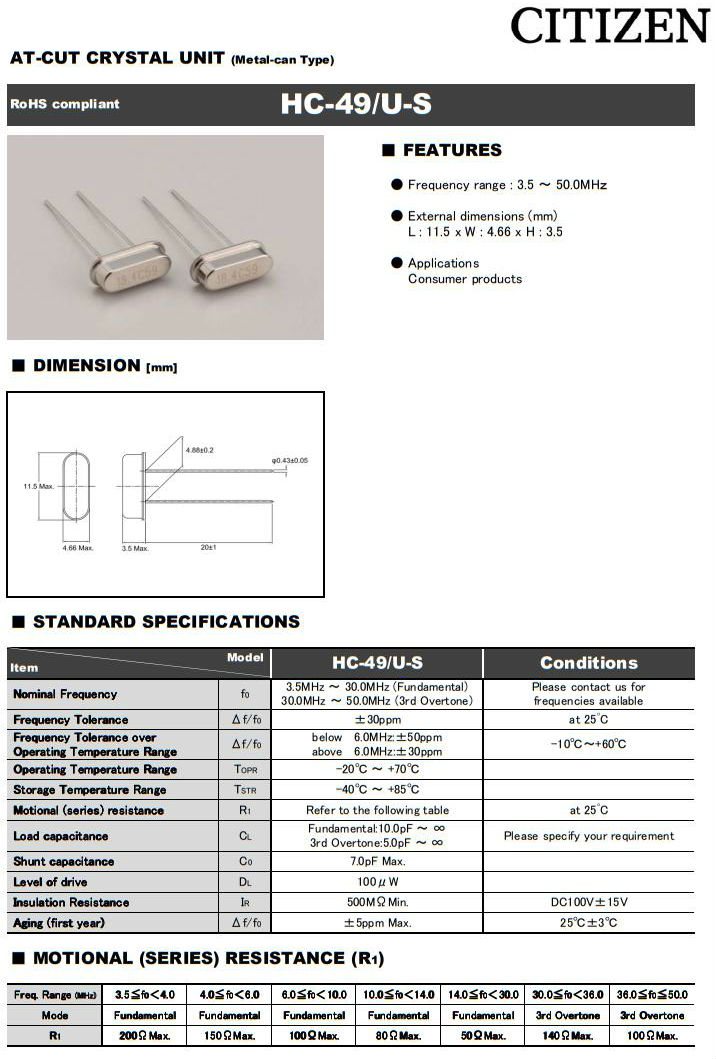

HC-49/U-S

料号	频率(MHZ)	工作温度	频率稳定性	频率容差	负载电容
HC-49/U-S4000000ABEB	4MHz	-10°C ~ 60°C	±50ppm	±30ppm	12pF
HC-49/U-S20000000ABKB	20MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HC-49/U-S16000000CHLB	16MHz	-10°C ~ 60°C	±100ppm	±100ppm	22pF
HC-49/U-S20000000CHLB	20MHz	-40°C ~ 85°C	±100ppm	±100ppm	22pF
HC-49/U-S14318180ABIB	14.31818MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HC-49/U-S4000000ABKB	4MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HC-49/U-S3579545BBIB	3.579545MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S19980000ABIB	19.98MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HC-49/U-S19980000ABQB	19.98MHz	-10°C ~ 60°C	±50ppm	±30ppm	10pF
HC-49/U-S16000000BBIB	16MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S16257000BBQB	16.257MHz	-10°C ~ 60°C	±50ppm	±50ppm	10pF
HC-49/U-S25000000BBEB	25MHz	-10°C ~ 60°C	±50ppm	±50ppm	12pF
HC-49/U-S20000000ABIB	20MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HC-49/U-S10000000CHLB	10MHz	-40°C ~ 85°C	±100ppm	±100ppm	22pF
HC-49/U-S12000000AAIB	12MHz	-10°C ~ 60°C	±30ppm	±30ppm	16pF
HC-49/U-S14318180AAEB	14.31818MHz	-10°C ~ 60°C	±30ppm	±30ppm	12pF
HC-49/U-S8000000ABIT	8MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HC-49/U-S8192000ABJB	8.192MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S16934400ABJB	16.9344MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S13560000BBIB	13.56MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S25000000ABKB	25MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HC-49/U-S48000000ABKB	48MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HC-49/U-S20000000BBIB	20MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S7987500BBIB	7.9875MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S25600000ABJB	25.6MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S8000000AAJB	8MHz	-10°C ~ 60°C	±30ppm	±30ppm	18pF
HC-49/U-S30000000ABJB	30MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S33333000ABJB	33.333MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S29491200BBIB	29.4912MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S6000000ABOB	6MHz	-10°C ~ 60°C	±50ppm	±30ppm	32pF
HC-49/U-S6176000ABJB	6.176MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S8643600BBIB	8.6436MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S20000000AAJB	20MHz	-10°C ~ 60°C	±30ppm	±30ppm	18pF
HC-49/U-S25000000BBIB	25MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S8000000ANJB	8MHz	-40°C ~ 85°C	±80ppm	±30ppm	18pF
HC-49/U-S18432000AAJB	18.432MHz	-10°C ~ 60°C	±30ppm	±30ppm	18pF
HC-49/U-S12000000BBQB	12MHz	-10°C ~ 60°C	±50ppm	±50ppm	10pF
HC-49/U-S16000000ABIB	16MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HC-49/U-S18516554BBQB	18.516554MHz	-10°C ~ 60°C	±50ppm	±50ppm	10pF
HC-49/U-S11289600ABJB	11.2896MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S12000000ABEB	12MHz	-10°C ~ 60°C	±50ppm	±30ppm	12pF
HC-49/U-S29491200ABJB	29.4912MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S18432000AAJT	18.432MHz	-10°C ~ 60°C	±30ppm	±30ppm	18pF
HC-49/U-S14700000BBKB	14.7MHz	-10°C ~ 60°C	±50ppm	±50ppm	20pF
HC-49/U-S15000000AAIB	15MHz	-10°C ~ 60°C	±30ppm	±30ppm	16pF
HC-49/U-S49152000ABJB	49.152MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S22118400AAQT	22.1184MHz	-10°C ~ 60°C	±30ppm	±30ppm	10pF
HC-49/U-S3686400BBIB	3.6864MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S6000000ABIT	6MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HC-49/U-S16667000ABJB	16.667MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S22579200ABIB	22.5792MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HC-49/U-S12500000BBEB	12.5MHz	-10°C ~ 60°C	±50ppm	±50ppm	12pF
HC-49/U-S4000000AHKB	4MHz	-40°C ~ 85°C	±100ppm	±30ppm	20pF
HC-49/U-S12500000BQQB	12.5MHz	-20°C ~ 70°C	±50ppm	±50ppm	10pF
HC-49/U-S13560000BQIB	13.56MHz	-20°C ~ 70°C	±50ppm	±50ppm	16pF
HC-49/U-S4000000BBIB	4MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S12000000BBQT	12MHz	-10°C ~ 60°C	±50ppm	±50ppm	10pF
HC-49/U-S48000000BBIB	48MHz	-10°C ~ 60°C	±50ppm	±50ppm	16pF
HC-49/U-S12000000ABIT	12MHz	-10°C ~ 60°C	±50ppm	±30ppm	16pF
HC-49/U-S13560000ABJB	13.56MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S19660800ABJB	19.6608MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S9216000ABJB	9.216MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S28636360ABJB	28.63636MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S24576000ABJB	24.576MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S16000312ABJB	16.000312MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S16257000ABJB	16.257MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S20000000ABJB	20MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S7680000ABJB	7.68MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S18432000ABJB	18.432MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S5000000ABJB	5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S15000000ABJB	15MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S15360000ABJB	15.36MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S3579545ABJB	3.579545MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S7372800ABJB	7.3728MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S11000000ABJB	11MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S14745600ABJB	14.7456MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S6000000ABJB	6MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S25000000ABJB	25MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S12000000ABJB	12MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S4000000ABJB	4MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S4915200ABJB	4.9152MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S48000000ABJB	48MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S9830400ABJB	9.8304MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S10240000ABJB	10.24MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S12288000ABJB	12.288MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S24000000ABJB	24MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S24000140ABJB	24.00014MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S10000000ABJB	10MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S32000000ABJB	32MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S3686400ABJB	3.6864MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S4194304ABJB	4.194304MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S16000000ABJB	16MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S8000000ABJB	8MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S22118400ABJB	22.1184MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S4096000ABJB	4.096MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S9000000ABJB	9MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S6144000ABJB	6.144MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S6500000ABJB	6.5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S16384000ABJB	16.384MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S11059200ABJB	11.0592MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S5068800ABJB	5.0688MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC49US-11.98135MABJB	11.98135MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S5990400ABJB	5.9904MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S50000000ABJB	50MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S27000000ABJB	27MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S33868800ABJB	33.8688MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S13500000ABJB	13.5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC49US-18.432MABJTR	18.432MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S4032000ABJB	4.032MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC49US-35.328MABJTR	35.328MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S12000393ABJB	12.000393MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S14318180ABJB	14.31818MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S17734475ABJB	17.734475MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S40000000ABJB	40MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC49US-30.000MABJ	30MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S11520000ABJB	11.52MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S18000000ABJB	18MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S25175000ABJB	25.175MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S21477270ABJB	21.47727MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S28224000ABJB	28.224MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC49US-20.000MABLB	20MHz	-10°C ~ 60°C	±50ppm	±30ppm	22pF
HC-49/U-S4433619ABJB	4.433619MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
HC-49/U-S4915200ABKB	4.9152MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HC-49/U-S25000000AMJB	25MHz	-40°C ~ 85°C	±60ppm	±30ppm	18pF
HC-49/U-S14318180ABKB	14.31818MHz	-10°C ~ 60°C	±50ppm	±30ppm	20pF
HC-49/U-S50000000AMJB	50MHz	-40°C ~ 85°C	±60ppm	±30ppm	18pF
