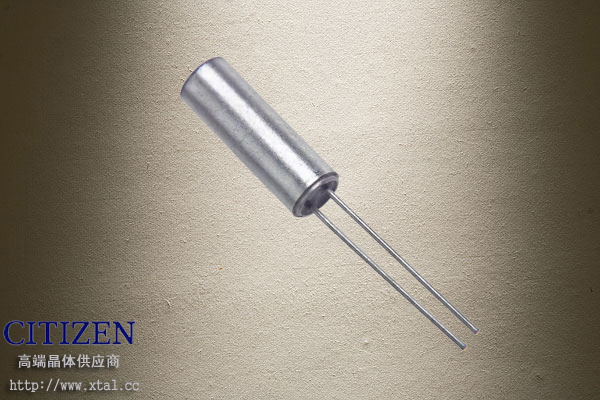

3x9晶振,8M晶振,CSA309-8.000MABJ,18PF,30PPM,西铁城晶振

产品分类：晶振规格书

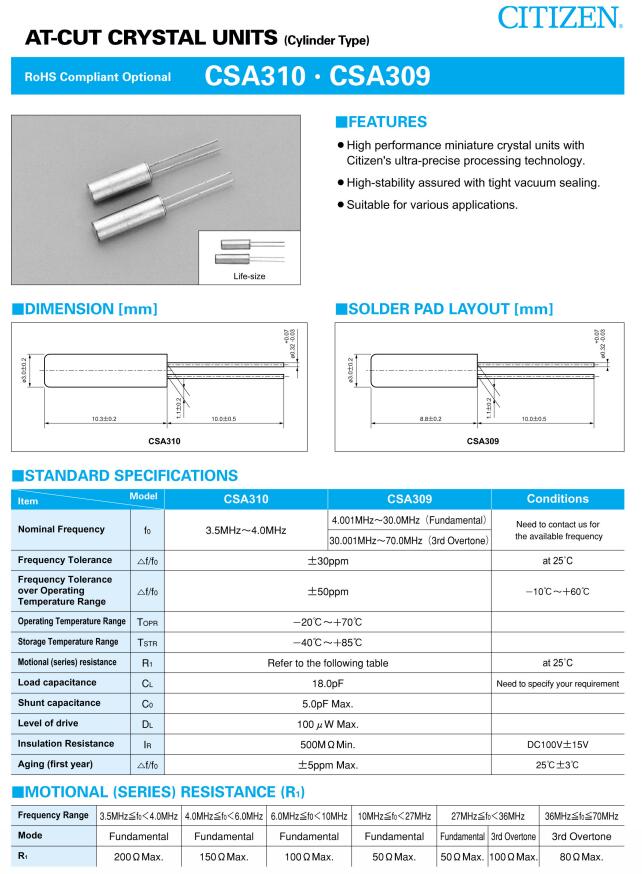

特征：微型晶体单元,采用公民的超精密加工技术。高稳定性保证,真空密封紧密,适用于各种电子产品。

订购热线： 0755-33533774

跟此产品相关的产品

产品详情

料号	频率(MHZ)	工作温度	频率稳定性	频率容差	负载电容
CSA309-15.000MABJ-UB	15MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-33.000MABJ-UB	33MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-17.734475MABJ-UB	17.734475MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-33.8688MABJ-UB	33.8688MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-18.000MABJ-UB	18MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-40.000MABJ-UB	40MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-19.6608MABJ-UB	19.6608MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-48.000MABJ	48MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-11.0592MABJ	11.0592MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-5.120MABJ-UB	5.12MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-7.680MABJ-UB	7.68MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-30.000MABJ-UB	30MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-49.152MABJ-UB	49.152MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-14.31818MABJ	14.31818MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-25.175MABJ	25.175MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-32.000MABJ	32MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.000MABJ-UB	12MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-32.768MABJ-UB	32.768MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-5.5296MABJ	5.5296MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-24.000MABJ	24MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-6.144MABJ-UB	6.144MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-14.31818MABJ-UB	14.31818MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-64.000MABJ-UB	64MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-4.915MABJ	4.915MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-33.3333MABJ	33.3333MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-4.096MABJ-UB	4.096MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-9.216MABJ-UB	9.216MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-10.240MABJ-UB	10.24MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-27.000MABJ	27MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-9.8304MABJ-UB	9.8304MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-15.000MABJ	15MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.000312MABJ	16.000312MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-19.6608MABJ	19.6608MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-8.000MABJ-UB	8MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.500MABJ-UB	12.5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-9.216MABJ	9.216MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-64.000MABJ	64MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-7.3728MABJ-UB	7.3728MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-8.192MABJ-UB	8.192MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.667MABJ-UB	16.667MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-20.480MABJ-UB	20.48MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-28.000MABJ-UB	28 MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-7.680MABJ	7.68MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-15.360MABJ	15.36MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-49.152MABJ	49.152MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-6.000MABJ-UB	6MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-11.2896MABJ-UB	11.2896MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-4.096MABJ	4.096MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.000MABJ	12MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-22.1184MABJ-UB	22.1184MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-25.000MABJ-UB	25MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-28.322MABJ-UB	28.322MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-18.432MABJ	18.432MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-18.869MABJ	18.869MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.000MABJ-UB	16MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-8.000MABJ	8MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.288MABJ	12.288MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-13.500MABJ	13.5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-53.125MABJ	53.125MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-13.500MABJ-UB	13.5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-14.7456MABJ-UB	14.7456MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-28.322MABJ	28.322MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-14.7456MABJ	14.7456MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.257MABJ	16.257MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-18.000MABJ	18MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-20.000MABJ	20MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-22.1184MABJ	22.1184MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.000MABJ	16MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-20.480MABJ	20.48MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-29.4912MABJ	29.4912MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.9344MABJ-UB	16.9344MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.352MABJ	12.352MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-4.9152MABJ-UB	4.9152MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.288MABJ-UB	12.288MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.000312MABJ-UB	16.000312MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-28.63636MABJ	28.63636MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-6.144MABJ	6.144MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-9.600MABJ	9.6MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-11.000MABJ	11MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.384MABJ	16.384MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-30.000MABJ	30MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-32.768MABJ	32.768MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-29.4912MABJ-UB	29.4912MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-32.000MABJ-UB	32MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-7.3728MABJ	7.3728MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-8.000156MABJ	8.000156MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-9.8304MABJ	9.8304MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-10.000MABJ	10MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-10.000MABJ-UB	10MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-6.000MABJ	6MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-10.240MABJ	10.24MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-11.2896MABJ	11.2896MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.500MABJ	12.5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.9344MABJ	16.9344MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.384MABJ-UB	16.384MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-33.3333MABJ-UB	33.3333MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-25.000MBAQ-UB	25MHz	-10°C ~ 60°C	±30ppm	±50ppm	10pF
CSA309-5.120MABJ	5.12MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.667MABJ	16.667MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-40.000MABJ	40MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-9.600MABJ-UB	9.6MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-11.0592MABJ-UB	11.0592MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-28.63636MABJ-UB	28.63636MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.352MABJ	12.352MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-4.9152MABJ-UB	4.9152MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.288MABJ-UB	12.288MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.000312MABJ-UB	16.000312MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-6.144MABJ	6.144MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-9.600MABJ	9.6MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-11.000MABJ	11MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.384MABJ	16.384MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-30.000MABJ	30MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-32.768MABJ	32.768MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-29.4912MABJ-UB	29.4912MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-32.000MABJ-UB	32MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-15.000MABJ	15MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-16.000312MABJ	16.000312MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-19.6608MABJ	19.6608MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-8.000MABJ-UB	8MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-12.500MABJ-UB	12.5MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-10.000MABJ	10MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
CSA309-10.000MABJ-UB	10MHz	-10°C ~ 60°C	±50ppm	±30ppm	18pF
