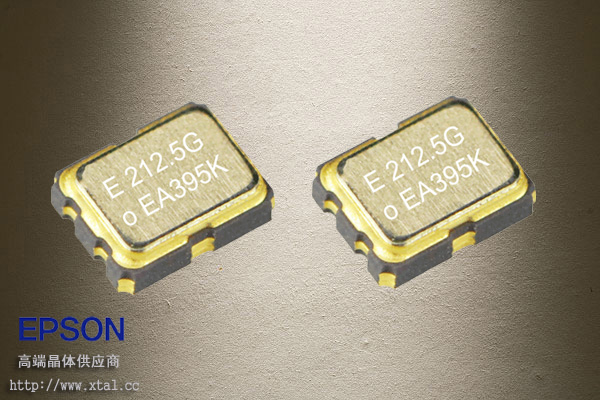

25MHz低相位抖动LV-PECL晶振,X1G005221003000,SG3225EEN

产品分类：晶振规格书

特征：频率范围：25MHz-500MHz,电源电压：2.5 V典型值/3.3 V典型值。功能：输出启用（OE）外形尺寸:3.2 × 2.5× 1.05毫米输出：LV-PECL型低相位抖动：50 fs（典型值）f0=156.25兆赫）工作温度:-40°C至+105°C。

订购热线： 0755-33533774

跟此产品相关的产品

产品详情

型号	料号	尺寸	电压	频率
SG3225EEN	X1G005221100800	3.2 x 2.5x1.05mm	2.375V-2.625V	156.253906MHz
SG3225EEN	X1G005221100700	3.2 x 2.5x1.05mm	2.375V-2.625V	156.25MHz
SG3225EEN	X1G005221100500	3.2 x 2.5x1.05mm	2.375V-2.625V	156.25MHz
SG3225EEN	X1G005221100300	3.2 x 2.5x1.05mm	2.375V-2.625V	156.25MHz
SG3225EEN	X1G005221003900	3.2 x 2.5x1.05mm	3.135V-3.465V	170.016MHz
SG3225EEN	X1G005221003800	3.2 x 2.5x1.05mm	3.135V-3.465V	25.000625MHz
SG3225EEN	X1G005221003700	3.2 x 2.5x1.05mm	3.135V-3.465V	100MHz
SG3225EEN	X1G005221003600	3.2 x 2.5x1.05mm	3.135V-3.465V	54MHz
SG3225EEN	X1G005221003400	3.2 x 2.5x1.05mm	3.135V-3.465V	125MHz
SG3225EEN	X1G005221003300	3.2 x 2.5x1.05mm	3.135V-3.465V	200MHz
SG3225EEN	X1G005221003200	3.2 x 2.5x1.05mm	3.135V-3.465V	160MHz
SG3225EEN	X1G005221003100	3.2 x 2.5x1.05mm	3.135V-3.465V	50MHz
SG3225EEN	X1G005221003000	3.2 x 2.5x1.05mm	3.135V-3.465V	25MHz
SG3225EEN	X1G005221002800	3.2 x 2.5x1.05mm	3.135V-3.465V	156.25MHz
SG3225EEN	X1G005221002400	3.2 x 2.5x1.05mm	3.135V-3.465V	166.015625MHz
SG3225EEN	X1G005221002300	3.2 x 2.5x1.05mm	3.135V-3.465V	25MHz
SG3225EEN	X1G005221002100	3.2 x 2.5x1.05mm	3.135V-3.465V	125MHz
SG3225EEN	X1G005221001900	3.2 x 2.5x1.05mm	3.135V-3.465V	50MHz
SG3225EEN	X1G005221001800	3.2 x 2.5x1.05mm	3.135V-3.465V	100MHz
SG3225EEN	X1G005221001400	3.2 x 2.5x1.05mm	3.135V-3.465V	200MHz
SG3225EEN	X1G005221001300	3.2 x 2.5x1.05mm	3.135V-3.465V	100MHz
SG3225EEN	X1G005221000800	3.2 x 2.5x1.05mm	3.135V-3.465V	156.25MHz
SG3225EEN	X1G005221000700	3.2 x 2.5x1.05mm	3.135V-3.465V	156.253906MHz
SG3225EEN	X1G005221000500	3.2 x 2.5x1.05mm	3.135V-3.465V	156.25MHz
SG3225EEN	X1G005221000300	3.2 x 2.5x1.05mm	3.135V-3.465V	125.003125MHz
SG3225EEN	X1G005221000200	3.2 x 2.5x1.05mm	3.135V-3.465V	125MHz
SG3225EEN	X1G005221000100	3.2 x 2.5x1.05mm	3.135V-3.465V	100MHz
SG3225EEN	X1G005221101000	3.2 x 2.5x1.05mm	3.135V-3.465V	50MHz
SG3225EEN	X1G005221100200	3.2 x 2.5x1.05mm	3.135V-3.465V	125MHz
SG3225EEN	X1G005221100100	3.2 x 2.5x1.05mm	3.135V-3.465V	100MHz
SG3225EEN	X1G005221005100	3.2 x 2.5x1.05mm	3.135V-3.465V	100MHz
SG3225EEN	X1G005221004800	3.2 x 2.5x1.05mm	3.135V-3.465V	156.25MHz
SG3225EEN	X1G005221004400	3.2 x 2.5x1.05mm	3.135V-3.465V	100MHz
SG3225EEN	X1G005221004300	3.2 x 2.5x1.05mm	3.135V-3.465V	25MHz
SG3225EEN	X1G005221004200	3.2 x 2.5x1.05mm	3.135V-3.465V	163.387607MHz
SG3225EEN	X1G005511000200	3.2 x 2.5x1.05mm	3.135V-3.465V	312.5MHz
