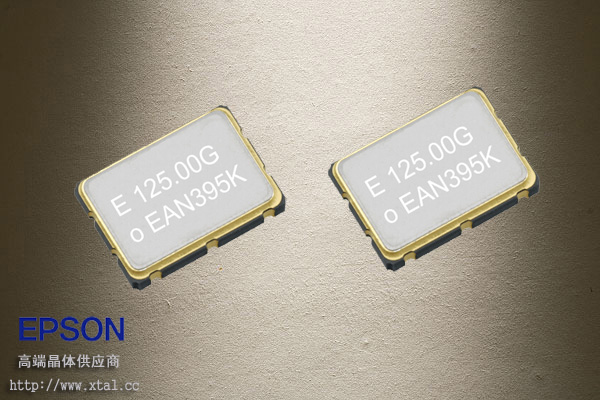

122.88MHz高频高精度差分晶振,SG7050VAN,X1G004281012500,
prev next
查看全部大图

122.88MHz高频高精度差分晶振,SG7050VAN,X1G004281012500,

产品分类： 晶振规格书
    特征：通过使用PLL技术和AT晶体单元来实现宽的频率范围,频率范围73.5 MHz to 700 MHz,电源电压2.5V / 3.3V功能：Output enable (OE)输出LVDS。
    订购热线： 0755-33533774
    跟此产品相关的产品
    产品详情

      型号 料号 尺寸 电压 频率
      SG7050VAN X1G004281013700 7.0 x 5.0x1.4mm 2.25V-3.63V 133.33MHz
      SG7050VAN X1G004281013400 7.0 x 5.0x1.4mm 2.25V-3.63V 300MHz
      SG7050VAN X1G004281013300 7.0 x 5.0x1.4mm 2.25V-3.63V 148.351648MHz
      SG7050VAN X1G004281013100 7.0 x 5.0x1.4mm 2.25V-3.63V 296.703MHz
      SG7050VAN X1G004281013000 7.0 x 5.0x1.4mm 2.25V-3.63V 322.265625MHz
      SG7050VAN X1G004281012800 7.0 x 5.0x1.4mm 2.25V-3.63V 622.08MHz
      SG7050VAN X1G004281012600 7.0 x 5.0x1.4mm 2.25V-3.63V 250MHz
      SG7050VAN X1G004281012500 7.0 x 5.0x1.4mm 2.25V-3.63V 122.88MHz
      SG7050VAN X1G004281012400 7.0 x 5.0x1.4mm 2.25V-3.63V 122.88MHz
      SG7050VAN X1G004281011900 7.0 x 5.0x1.4mm 2.25V-3.63V 125.00375MHz
      SG7050VAN X1G004281011800 7.0 x 5.0x1.4mm 2.25V-3.63V 175MHz
      SG7050VAN X1G004281011700 7.0 x 5.0x1.4mm 2.25V-3.63V 125.003125MHz
      SG7050VAN X1G004281011500 7.0 x 5.0x1.4mm 2.25V-3.63V 174.7031MHz
      SG7050VAN X1G004281011300 7.0 x 5.0x1.4mm 2.25V-3.63V 200MHz
      SG7050VAN X1G004281010800 7.0 x 5.0x1.4mm 2.25V-3.63V 644.531MHz
      SG7050VAN X1G004281010600 7.0 x 5.0x1.4mm 2.25V-3.63V 350MHz
      SG7050VAN X1G004281010500 7.0 x 5.0x1.4mm 2.25V-3.63V 250MHz
      SG7050VAN X1G004281010400 7.0 x 5.0x1.4mm 2.25V-3.63V 114.285MHz
      SG7050VAN X1G004281010300 7.0 x 5.0x1.4mm 2.25V-3.63V 80MHz
      SG7050VAN X1G004281010200 7.0 x 5.0x1.4mm 2.25V-3.63V 98.304MHz
      SG7050VAN X1G004281010100 7.0 x 5.0x1.4mm 2.25V-3.63V 250MHz
      SG7050VAN X1G004281009600 7.0 x 5.0x1.4mm 2.25V-3.63V 148.35MHz
      SG7050VAN X1G004281009200 7.0 x 5.0x1.4mm 2.25V-3.63V 68.75MHz
      SG7050VAN X1G004281009100 7.0 x 5.0x1.4mm 2.25V-3.63V 50MHz
      SG7050VAN X1G004281008800 7.0 x 5.0x1.4mm 2.25V-3.63V 68.75MHz
      SG7050VAN X1G004281008700 7.0 x 5.0x1.4mm 2.25V-3.63V 50MHz
      SG7050VAN X1G004281008400 7.0 x 5.0x1.4mm 2.25V-3.63V 68.75MHz
      SG7050VAN X1G004281008300 7.0 x 5.0x1.4mm 2.25V-3.63V 50MHz
      SG7050VAN X1G004281008000 7.0 x 5.0x1.4mm 2.25V-3.63V 68.75MHz
      SG7050VAN X1G004281007900 7.0 x 5.0x1.4mm 2.25V-3.63V 50MHz
      SG7050VAN X1G004281007300 7.0 x 5.0x1.4mm 2.25V-3.63V 312.515625MHz
      SG7050VAN X1G004281007200 7.0 x 5.0x1.4mm 2.25V-3.63V 312.5MHz
      SG7050VAN X1G004281007100 7.0 x 5.0x1.4mm 2.25V-3.63V 156.25MHz
      SG7050VAN X1G004281006900 7.0 x 5.0x1.4mm 2.25V-3.63V 150MHz
      SG7050VAN X1G004281006800 7.0 x 5.0x1.4mm 2.25V-3.63V 75MHz
      SG7050VAN X1G004281006700 7.0 x 5.0x1.4mm 2.25V-3.63V 148.5MHz
      SG7050VAN X1G004281006600 7.0 x 5.0x1.4mm 2.25V-3.63V 74.25MHz
      SG7050VAN X1G004281006500 7.0 x 5.0x1.4mm 2.25V-3.63V 212.5MHz
      SG7050VAN X1G004281006400 7.0 x 5.0x1.4mm 2.25V-3.63V 106.25MHz
      SG7050VAN X1G004281006300 7.0 x 5.0x1.4mm 2.25V-3.63V 400MHz
      SG7050VAN X1G004281006200 7.0 x 5.0x1.4mm 2.25V-3.63V 200MHz
      SG7050VAN X1G004281006100 7.0 x 5.0x1.4mm 2.25V-3.63V 100MHz
      SG7050VAN X1G004281005900 7.0 x 5.0x1.4mm 2.25V-3.63V 125.00625MHz
      SG7050VAN X1G004281005800 7.0 x 5.0x1.4mm 2.25V-3.63V 125MHz
      SG7050VAN X1G004281005500 7.0 x 5.0x1.4mm 2.25V-3.63V 161.1328MHz
      SG7050VAN X1G004281005400 7.0 x 5.0x1.4mm 2.25V-3.63V 312.515625MHz
      SG7050VAN X1G004281005300 7.0 x 5.0x1.4mm 2.25V-3.63V 312.5MHz
      SG7050VAN X1G004281005200 7.0 x 5.0x1.4mm 2.25V-3.63V 156.25MHz
      SG7050VAN X1G004281005000 7.0 x 5.0x1.4mm 2.25V-3.63V 150MHz
      SG7050VAN X1G004281004900 7.0 x 5.0x1.4mm 2.25V-3.63V 75MHz
      SG7050VAN X1G004281004800 7.0 x 5.0x1.4mm 2.25V-3.63V 148.5MHz
      SG7050VAN X1G004281004700 7.0 x 5.0x1.4mm 2.25V-3.63V 74.25MHz
      SG7050VAN X1G004281004600 7.0 x 5.0x1.4mm 2.25V-3.63V 212.5MHz
      SG7050VAN X1G004281004500 7.0 x 5.0x1.4mm 2.25V-3.63V 106.25MHz
      SG7050VAN X1G004281004400 7.0 x 5.0x1.4mm 2.25V-3.63V 400MHz
      SG7050VAN X1G004281004300 7.0 x 5.0x1.4mm 2.25V-3.63V 200MHz
      SG7050VAN X1G004281004200 7.0 x 5.0x1.4mm 2.25V-3.63V 100MHz
      SG7050VAN X1G004281004000 7.0 x 5.0x1.4mm 2.25V-3.63V 125.00625MHz
      SG7050VAN X1G004281003900 7.0 x 5.0x1.4mm 2.25V-3.63V 125MHz
      SG7050VAN X1G004281003800 7.0 x 5.0x1.4mm 2.25V-3.63V 700MHz
      SG7050VAN X1G004281003600 7.0 x 5.0x1.4mm 2.25V-3.63V 161.1328MHz
      SG7050VAN X1G004281003500 7.0 x 5.0x1.4mm 2.25V-3.63V 312.515625MHz
      SG7050VAN X1G004281003400 7.0 x 5.0x1.4mm 2.25V-3.63V 312.5MHz
      SG7050VAN X1G004281003100 7.0 x 5.0x1.4mm 2.25V-3.63V 150MHz
      SG7050VAN X1G004281002900 7.0 x 5.0x1.4mm 2.25V-3.63V 148.5MHz
      SG7050VAN X1G004281002700 7.0 x 5.0x1.4mm 2.25V-3.63V 212.5MHz
      SG7050VAN X1G004281001900 7.0 x 5.0x1.4mm 2.25V-3.63V 700MHz
      SG7050VAN X1G004281001700 7.0 x 5.0x1.4mm 2.25V-3.63V 161.1328MHz
      SG7050VAN X1G004281001600 7.0 x 5.0x1.4mm 2.25V-3.63V 312.515625MHz
      SG7050VAN X1G004281001500 7.0 x 5.0x1.4mm 2.25V-3.63V 312.5MHz
      SG7050VAN X1G004281001400 7.0 x 5.0x1.4mm 2.25V-3.63V 156.25MHz
      SG7050VAN X1G004281001300 7.0 x 5.0x1.4mm 2.25V-3.63V 155.52MHz
      SG7050VAN X1G004281001200 7.0 x 5.0x1.4mm 2.25V-3.63V 150MHz
      SG7050VAN X1G004281001100 7.0 x 5.0x1.4mm 2.25V-3.63V 75MHz
      SG7050VAN X1G004281000800 7.0 x 5.0x1.4mm 2.25V-3.63V 212.5MHz
      SG7050VAN X1G004281000600 7.0 x 5.0x1.4mm 2.25V-3.63V 400MHz
      SG7050VAN X1G004281000200 7.0 x 5.0x1.4mm 2.25V-3.63V 125.00625MHz
      SG7050VAN X1G004281000100 7.0 x 5.0x1.4mm 2.25V-3.63V 125MHz
      SG7050VAN X1G004281002400 7.0 x 5.0x1.4mm 2.25V-3.63V 200MHz
      SG7050VAN X1G004281003300 7.0 x 5.0x1.4mm 2.25V-3.63V 156.25MHz
      SG7050VAN X1G004281002300 7.0 x 5.0x1.4mm 2.25V-3.63V 100MHz
      SG7050VAN X1G004281003312 7.0 x 5.0x1.4mm 2.25V-3.63V 156.25MHz
      SG7050VAN X1G004281002812 7.0 x 5.0x1.4mm 2.25V-3.63V 74.25MHz
      SG7050VAN X1G004281002012 7.0 x 5.0x1.4mm 2.25V-3.63V 125MHz
      SG7050VAN X1G004281001011 7.0 x 5.0x1.4mm 2.25V-3.63V 148.5MHz
      SG7050VAN X1G004281000411 7.0 x 5.0x1.4mm 2.25V-3.63V 100MHz
      SG7050VAN X1G004281000511 7.0 x 5.0x1.4mm 2.25V-3.63V 200MHz
      SG7050VAN X1G004281002112 7.0 x 5.0x1.4mm 2.25V-3.63V 125.00625MHz
      SG7050VAN X1G004281003212 7.0 x 5.0x1.4mm 2.25V-3.63V 155.52MHz
